Handleiding Eureka Headquarters Tent

Handleiding

Component List: 1 Tent Body 4 Poles 1 Carry Bag,

1 Stake Bag / Stakes 2 Hood Rods,

1 Tent Fly 1 Fly Rod 1 Pole Bag

ASSEMBLY

1. Lay the tent body out on the ground. In windy conditions, the

windward corner of the tent should be staked down. Take all of

the poles out of the carry bag and assemble them to their full

length.

NOTE: Orient the spider at the top of the tent such that the roof

fabric is not twisted and the holes are facing the short sides

of the tent.

2. One end of each frame pole has been reinforced and labeled

"TOP". Insert this end into one of the holes in the spider.

Make sure that it seats securely. Improper fit could cause the

spider to break. See fig.1.

3. Follow the seam from the spider, down to the corner of the tent.

Make sure that the spider is properly oriented, then insert the

pin on the corner ring into the other end of the pole.

5. Connect all clips

to the frame. See fig.3.

6. Stake out the tent through the corner rings. Work by staking

opposite corners while applying tension to remove wrinkles

from the floor. Stake the side stake loops last.

NOTE: General purpose stakes have been included, sand or

snow may require a more substantial stake.

Purchase these from your Eureka! dealer.

WINDOWS: To help prevent condensation, keep the doors and windows

open.Tuck the window fabric into its pouch at the bottom of the window.

DIVIDER CURTAIN: After pitching the tent, you may install the included divider

curtain. Place the curtain peak toggle into the O-ring on the peak of the tent. Attach

each toggle, on the side of the curtain, to its corresponding ring on the tent.

NOTE: In strong winds, tie extra ropes to the storm loops on the fly and stake down.

TAKE DOWN: Pull up stakes. Release the fly's Velcro™ and buckles. Remove fly and

take out rod. Remove clips from poles and pull posts off of the pins. Collapse the

tent poles/ rod and stow. Fold the tent onto itself and fold the fly and lay it on tent.

Roll up both towards the door and stow.

AVAILABLE OPTIONS: Floor Saver, Gear Loft

4. Insert the next pole into the opposite hole on the spider.

Carefully tension this assembly by placing the corner pin in the

other end of this pole. See fig.2.

7. Lay the fly out on the ground upside down. Place the ends of

the fly rod in the web pockets on the sides of the fly. Fasten

the hook and loop strap around the center of the rod to keep

it in place. See fig.4.

8.Turn the fly right side up and place it on the tent with the fly pole over the

door. Fasten the hook and loop straps around the frame members to keep

the fly in place.

Place hood rods through the sleeves on the ends of the fly. Insert the ends of

the hood rods into the grommets at the corners of the windows.

Fasten the side release buckles at all of the corners and tension until all

wrinkles are gone from the fly. Set the window hoods to the same height.

If the fly has shifted, reattach the hook and loop straps to the frame.

See fig.5.

REV E 4.09

ASSEMBLY INSTRUCTIONS

FOR HEADQUATERS TENT:

YOUR TENT IS

READY FOR USE!

With the assembly on the ground, place a third pole

into the spider and place the corner pin in the other end.

Lift the spider and insert the last pole. Carefully apply tension

by inserting the corner pin into the end of this pole.

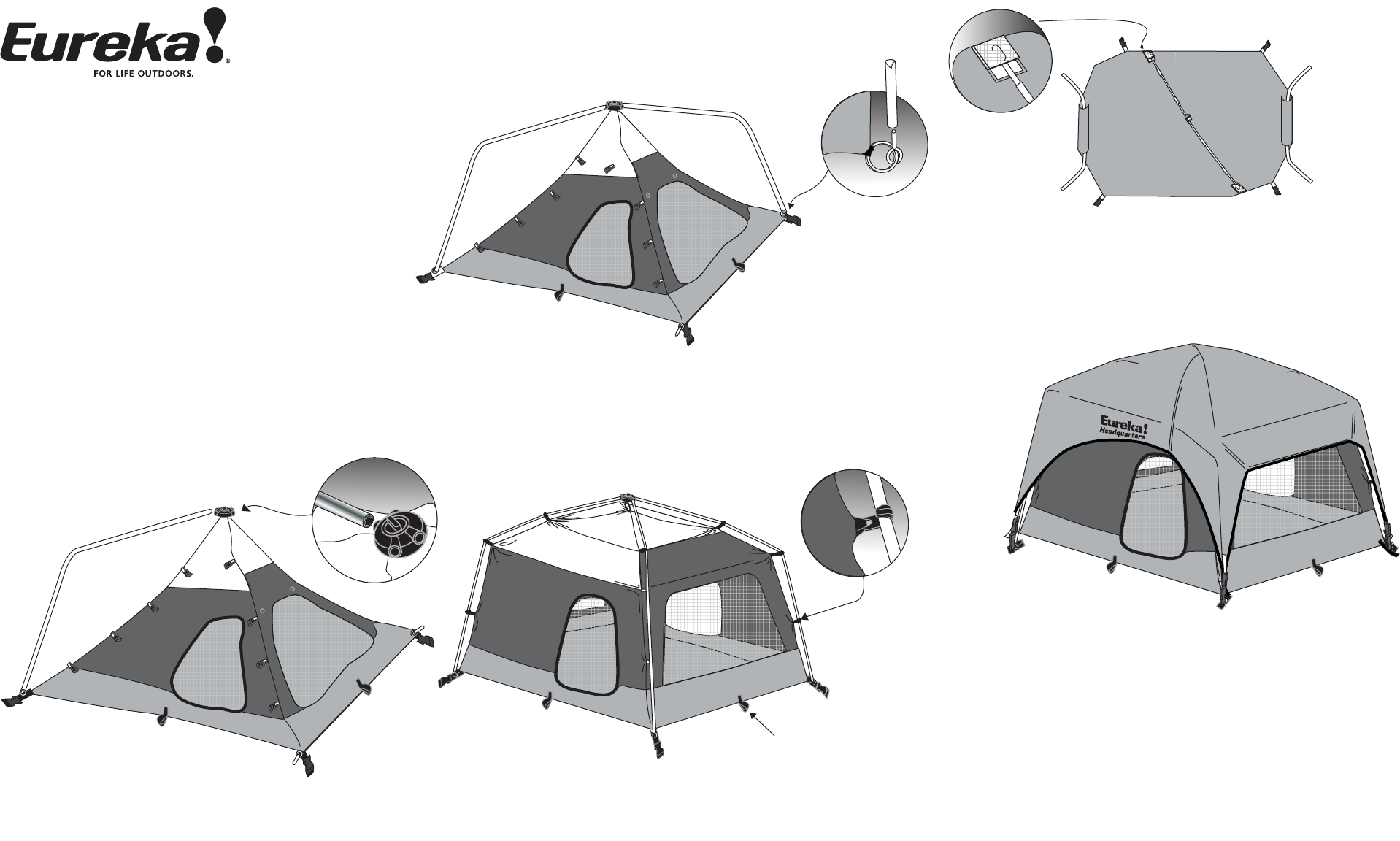

figure 4

figure 1

TOP

stake loop

figure 3

figure 2

figure 5
