Handleiding Silverlit Twin Hurricane Radiobestuurbare helikopter

Handleiding

Special Note to Adults:

- Parents: Please read the operating instructions carefully with your children prior to the first use.

- Only operate the toy indoor under adult supervision.

- Assembly should be performed under adult supervision (changing batteries/ spare parts, trimming etc.).

- Parental guidance is recommended when installing or replacing batteries.

Helicopter is equipped with a LiPo rechargeable battery,

please pay attention to the following cautions for safety use:

- Do not dispose the battery in fire or heat.

- Do not use or leave the battery near a heat source such as fire or heater.

- Do not strike or throw the battery against hard surface.

- Do not immerse the battery in water, and keep the battery in a cool dry environment.

- When recharging, only use the battery charger specifically for that purpose.

- Do not over-discharge the battery.

- Do not connect the battery to an electrical outlet.

- Do not directly solder the battery and pierce the battery with a nail or other sharp object.

- Do not transport or store the battery together with metal objects such as necklaces, hairpins etc.

- Do not disassemble or alter the battery.

- Charge the battery every 6 months.

Care and Maintenance:

- Always remove batteries from the toy when it is not being used for a long period of time.

(Transmitter only)

- Regularly examine for damage to the plug, enclosure and other parts. In the event of any damage, the

toy must not be used with the transmitter charger until the damage has been repaired.

- Wipe the toy gently with a clean cloth.

- Keep the toy away from direct heat.

- Do not submerge the toy into water that can damage the electronic assemblies.

Note:

- Under the environment with electrostatic discharge, the toy may malfunction and require user to reset

the toy.

- New alkaline batteries are recommended to use in this toy to obtain best and maximum performance.

- This toy must only be used with the recommended charger.

Battery Warnings:

- Non-rechargeable batteries are not to be recharged.

- Rechargeable batteries are to be removed before being charged. (Transmitter only)

- Rechargeable batteries are only to be charged under adult supervision.

- Different types of batteries or new and used batteries are not to be mixed. (Transmitter only)

- Only batteries of the same or equivalent type as recommended are to be used.

- Batteries are to be inserted with correct polarity.

- Exhausted batteries are to be removed from the transmitter.

- The supply terminals are not to be short-circuited.

- Do not mix old and new batteries. (Transmitter only)

- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. (Transmitter only)

Transmitter

- For controlling the sticks on transmitter, try not to push the sticks immediately any extreme

positions. It should be like steering a bicycle rather than pressing computer game sticks.

- For the novice pilot (after the trimming procedure is completed), it is highly recommended to

focus exclusively on learning to control the throttle stick first. If the helicopter turns around by

itself there is no need to keep it straight. For the first flight, it is important to learn to keep the

helicopter at a constant altitude of around 1 meter with very gentle inputs on the throttle stick.

Once the pilot masters this, he may start learning to take control with the direction stick.

The crossed-out dustbin symbol indicates that batteries, rechargeable batteries,

button cells, battery packs, etc. must not be put in the household waste. Batteries

are harmful to health and the environment. Please help to protect the environment

from health risks. Tell your children to dispose of batteries properly by taking them

to the local collecting points. This way batteries are recycled safely.

WEEE

When this appliance is out of use, please remove all batteries and dispose of them

separately. Bring electrical appliances to the local collecting points for waste electrical

and electronic equipment. Other components can be disposed of in domestic refuse.

WARNING:

CHOKING HAZARD - Small parts.

Not for Children under 3 years.

Parts Identification

Troubleshooting

Tips

Fly The Helicopter

Trimming

Battery Installation & Charging

Safety Precautions:

Warning:

Conversion or modifications to this product not expressly approved by the party responsible for

compliance could void the user's authority to operate the product.

- The transmitter-charger is tailor-made for the LiPo rechargeable battery used in helicopter. Do not use it to charge

any battery other than that in the helicopter.

Tip! CONTROLLING

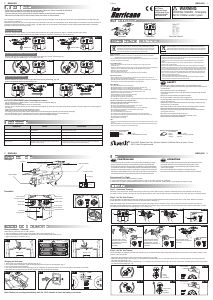

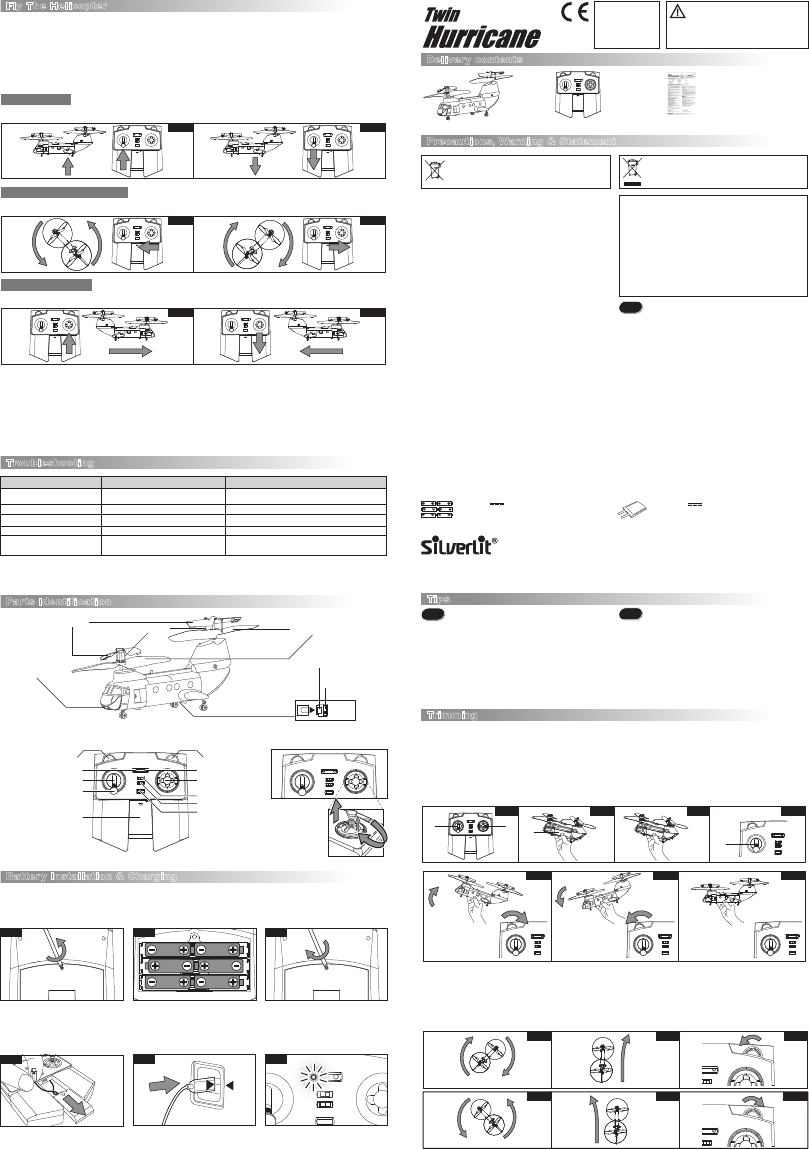

Helicopter Transmitter Instruction Manual

Delivery contents

Precautions, Warning & Statement

- If the helicopter is crashed, switched off the helicopter and the transmitter. Examine

the helicopter and ensure it has no damages before switching them on again.

- Don’t operate the helicopter under the direct bright light it will affect the control

system of your helicopter.

- Don’t cover the IR diodes of the transmitter as it will block the IR signal.

- Don’t stick any other label onto the helicopter as it will affect receiving of IR signal.

Tip! OPERATION

- Set the band on transmitter to the same as the helicopter's. Make sure that the transmitter is switched off.

- Switch on the helicopter, the red LED in the canopy will flash.

- Place the helicopter on the ground with the tail point towards you and the nose pointing away.

- Make sure the throttle stick is at the minimum position, then switch on the transmitter.

ENGLISH 1

ENGLISH 3

4 ENGLISH

2 ENGLISH

For ages 15+

Ab 15 Jahre

A partir de 15 ans

Leeftijd vanaf 15 jaar

A partir de 15 años

Dai 15 anni in su

- Never take apart or attempt to modify the product. This could damage the product.

- Helicopter piloting requires specific skills and should be learned under direct supervision of an

experienced adult.

- Never operate this product if it has damaged parts.

- This product is designed for indoor use only. Wind and short transmission range can lead to

loss of control.

- Attention! Do not fly the helicopter near persons and animals.

- Do not fly the helicopter in the vicinity of water and power lines.

- For better flight results, make sure you choose a sufficiently large room, free of obstacles such

as lamps, loose objects, etc.

- Always keep your eyes on the helicopter and prevent it from landing or crashing near your

head, your body, or on other people.

- Stand during operation in order to get out of the way of the helicopter quickly if necessary.

- Always switch the helicopter and the transmitter off when not operating.

- Warning! Do not touch the running rotors. Keep hands, hair and loose clothes away from

moving parts to avoid injury.

- Never hold or throw any objects into the running rotors.

- Attention! Risk of eye injuries! Keep a safety distance of at least 1 metre.

- Keep this instruction manual for future reference.

Tip! SAFETY

Silverlit SAS, Espace Green Parc, Route de Villepecle, 91280 Saint Pierre du Perray / France.

©2011 Silverlit. All rights reserved.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1)This device may not cause harmful interference, and

2)This device must accept any interference received, including interference that may cause undesired

operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Statements

Battery requirements (Transmitter) :

Battery requirements (Helicopter) :

Power Supply :

Rating : 9 V DC ; 2.2 W

Batteries : 6 x 1.5 V "AA"/LR6/AM3 (not included)

Power Supply :

Rating : 3.7 V DC ; 7.8 W

Batteries : 1 x 3.7 V LiPo battery (included)

Capacity : 200 mAh

EI-2446a

Helicopter

Stabilizer

Connecting shaft

Main Rotor Blade

Charging Socket

LED Headlight

Power Switch

ON

OFF/CHARGE

Pitch Trimmer

Charging Indicator

Headlight Switch

Direction stick

Yaw Trimmer

Power Indicator

Cover and

Charging Wire

Throttle Stick

Thumb Rest

Power Switch

Band Selector

Battery Installation - Transmitter

Make sure the power switch is on “OFF” position.

1. Use a screwdriver to loosen screw on the battery case in anti-clockwise. (fig. 1)

2. Put 6 AA size batteries in the battery compartment as per the polarity shown inside. (fig. 2)

3. Tighten the screw in clockwise. (fig. 3)

Battery coverBattery cover

Charging the Helicopter

1. Pull out the cover and take out the charging wire. (fig. 4)

2. Turn off the power of helicopter. Insert the charging plug into the socket on the helicopter. (fig. 5)

3. Turn on the power of the transmitter.

4. The green LED will light up when charging (fig. 6), is completed, the green LED will turn off. Put the plug out of the socket on helicopter.

5. The helicopter can have about 4-5 minutes of flight time after 30-40 minutes charging.

Note: Before you recharge the battery, wait for 10-15 minutes to have the battery cool down.

Step 1 : Understand Trimming

Trimming is very important to reach maximum flight comfort and control. With the pitch ( forward or backward) trimmer, the helicopter can be set very

accurately to fly at a perfect hovering or at very slow speed. With the Yaw or (left or right) trimmer, the Helikopter can be set to stop at any undesired rotation.

For an ideal flight, the helicopter should hover without any forward or backward speed with the right transmitter stick A in the center. Makes sure that the

throttle B is set to minimum position such that the rotors DO NOT TURN (fig. 7).

Hold the helicopter body gently between the thumb and the index finger about in the point C (fig. 8 & fig. 9). Exercise only little pressure such that the

helicopter can still rotate around C. Increase the throttle stick to the position D (fig. 10) about 30%, the rotors will start turning. Observe the direction in which

the helicopter inclines and trim accordingly (fig. 11, fig. 12 & fig. 13).

Step 2 : Set The Pitch Trimmer

For an ideal flight, the helicopter should hover without any yaw or left/right rotation with the right transmitter stick A in the center. So we need to set the correct

position of the yaw trimmer.

- Gently push the throttle up to raise your helicopter no higher than 0.5 meter.

- When the helicopter spirals clockwise (fig. 14) or keeps turning clockwise(fig. 15), turn the yaw trimmer counter-clockwise gently till the turning stops and

helicopter flies straight (fig. 16).

- When the helicopter spirals counter-clockwise (fig. 17) or keeps turning counter-clockwise (fig. 18), turn the yaw trimmer clockwise gently till the turning stops

and helicopter flies straight (fig. 19).

Step 3 : Set The Yaw Trimmer

AB

fig. 11 fig. 12 fig. 13

fig. 7 fig. 8 fig. 9 fig. 10

D

If the helicopter rotates

backward, trim by turning

the speed trim clockwise

until the body is

horizontal.

If the helicopter rotates

forward, trim by turning

the speed trim counter

clockwise until the body is

horizontal.

The helicopter stays

horizontal and is ready for

next step.

Keep

turning

clockwise

Keep turning

counter

clockwise

Yaw Trimmer

fig. 14 fig. 15 fig. 16

fig. 17 fig. 18 fig. 19

Spiral clockwise

Yaw Trimmer

Spiral counter clockwise

C

Environment For Flight:

- Put the helicopter on a smooth surface. Uneven floor surface will affect its lifting off.

- Slowly increase the throttle.

- DO NOT look at the transmitter but focus on the helicopter.

- As soon as the helicopter leaves ground, reduce the throttle slightly. (In worst case, helicopter will go back to the floor, but that is better than crashing against

the ceiling)

- VERY gently add the throttle if the helicopter goes down.

- VERY gently reduce the throttle if the helicopter goes up.

- For turning, give short and small inputs to the direction stick. (Most beginners will easily overcontrol the helicopter)

- For moving forward, turn the helicopter pointing to more open space before pushing the forward buttons.

- Avoid to put the helicopter in excessive speed, because this may destabilize the flight.

Choose the place which meet the following condition:

1. Indoor environment with calm air condition. Beware of the air circulation from the air-conditioner.

2. Safety area: It is highly recommended that there is no electric fan, air-conditioner, reading lamp or other dangerous objects to flying.

LIFT-OFF PROCEDURE (after Trimming procedure):

Symptom Cause Correction

Suddenly stop and drop down when flying.

Propeller can't move. - ON/OFF Switch is OFF.

- Weak Battery.

- Set switch to ON.

- Re-charge the battery pack.

- Re-charge the battery pack.- Weak power.

The helicopter does not react. - Reset the correct channel.- Channel selection on transmitter is not correct.

- Another Infrared control device using the same channel.

- Affected by strong lighting.

- Avoid these if possible, or choose another place to operate the helicopter.

- Change another environment to avoid direct lighting.

Loss of control.

The power indicator on transmitter blinking - Weak power of transmitter. - Change new batteries in transmitter.

Hover up and down:

Hover downHover up

Your helicopter is trimmed now, and you can start enjoying the flying. During flight, small adjustments on the trims can be performed to your taste using the

index finger to turn the trims.

Overall be very gentle with the control inputs. Always use small input and learn how the helicopter reacts. Easiest flight is accomplished when the helicopter is

trimmed to fly forward by itself at a very low speed. The flight speed can be increased or decreased by moving the flight speed stick forward or backward

preferably in small amounts for best results.

fig. 20 fig. 21

When the helicopter flies steadily, you can slowly push the left stick up to make helicopter fly higher, or release the stick a bit to make

helicopter fly lower. Only small amounts of stick position change are required for smooth flying. (fig. 20 & fig. 21)

Turn counter clockwise and clockwise:

fig. 22 fig. 23

Hold the helicopter at a height. Push the right stick toward left to turn counter clockwise (fig. 22),

and push the right stick toward right to turn clockwise. (fig. 23)

Fly forward and backward:

fig. 24 fig. 25

Hold the helicopter at a height. Push the right stick toward up to fly forward (fig. 24), and

push the stick toward down to fly backward (fig. 25).

OFF ON/CHARGE

A B

CHARGING POWER

fig. 1 fig. 2 fig. 3

fig. 4 fig. 5 fig. 6

Beoordeling

Meer over deze handleiding

We begrijpen dat het prettig is om een papieren handleiding te hebben voor je Silverlit Twin Hurricane Radiobestuurbare helikopter. Je kunt de handleiding bij ons altijd downloaden en daarna zelf printen. Indien je graag een originele handleiding wilt hebben, raden we je aan contact op te nemen met Silverlit. Zij kunnen wellicht nog voorzien in een originele handleiding. Zoek je de handleiding van Silverlit Twin Hurricane Radiobestuurbare helikopter in een andere taal? Kies op de homepage je taal naar keuze en zoek daarna op het modelnummer om te zien of we deze beschikbaar hebben.

Specificaties

Alle handleidingen voor Silverlit Radiobestuurbare helikopters
Meer handleidingen voor Silverlit
