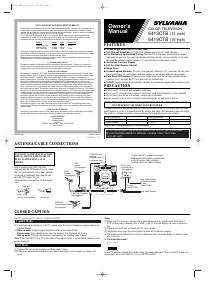

Handleiding Sylvania 6419CTB Televisie

Handleiding

This TV can receive C1 and C2 of Caption and Text.

Caption Mode

(1)Characters can be displayed on the TV screen when the received broadcast signal contains the

Caption Signals.

(2)Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode: Once characters are stored in memory, it is displayed all at once.

Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

Note: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will

not be displayed.

Text Mode

(1)Displays the text on the screen by scrolling (max. 7 lines)

(2)If the received broadcast signal does not contain the caption or text signal, no change will

occur.

Notes:

(1)When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a

VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or

text.

(2)Captions and texts may not match the TV voice exactly.

(3)Interference may cause the closed caption system not to function properly.

(4)The caption or text characters will not be displayed while the menu display or function’s dis-

play is shown.

(5)If you see this screen!!

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To

clear screen, select CAPTION C1, C2 or CAPTION [OFF].

ANTENNA/CABLE CONNECTIONS

PRECAUTION

● Place your TV in a room with adequate ventilation.

● Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

● Do not place your TV on soft surfaces, such as rugs or blankets.

● Leave enough room for air to circulate around the bottom, top and back of the set.

FEATURES

● Tinted, Bright Black Matrix Picture Tube

● 181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

● PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic

tuning system provides free and easy channel selection, and lets you tune directly to any chan-

nel using the channel number buttons (0~9 and +100-key) on the remote control.

● On-Screen Function Display.

● Full-Function Remote Control

● Sleep Timer

● Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,

prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

● Auto Shut Off Function- If there is no air signal input from the antenna terminal and no

operation for 15 minutes, the TV will turn itself off automatically.

● V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

COLOR TELEVISION

6413CTB (13 inch)

6419CTB (19 inch)

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

The serial number of this product may be found on the back of the TV. No others have the same

serial number as yours. You should record the number and other vital information here and retain

this book as a permanent record of your purchase to aid identification in case of theft.

ANT.IN

CLOSED CAPTION

UHF

Antenna

(Not supplied)

VHF

Antenna

(Not supplied)

VHF/UHF Combiner

(Not supplied)

VHF/UHF

Combination Antenna

(Not supplied)

UHF/VHF Rod

Antenna

(Supplied with 13

inch model only)

OR

OR

ANT. IN

OUT IN

75-ohm

Coaxial Cable

From Cable System

From Cable System

or Satellite Antenna

75-ohm

Coaxial Cable

CATV Box

*

or Satellite Box

(Not supplied)

*Some cable TV systems use scram-

bled signals and require a special con-

verter to receive these channels.

Consult your local cable company.

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING

AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE

1-800-287-4871.

Owner’s

Manual

0EMN01839 Printed in China

L1354CE * * * * *

This Owner’s Manual is made of recycled paper.

SYLVANIA HOME ENTERTAINMENT WARRANTY

We appreciate your purchase of a SYLVANIA Home Entertainment product. We take pride in the quality of our

products and have manufactured your new Home Entertainment unit to exacting quality standards. We feel

confident that in normal use, it will provide you with satisfactory performance. However, should you experience

difficulty, you are protected under the provisions of this warranty.

SYLVANIA Home Entertainment products are warranted against manufacturing defects in materials and

workmanship in normal use for the following periods from the date of purchase by the original user, and is

conditional upon the unit being installed and used as directed in the instruction manual.

Product Labour Parts Picture Tube

Colour Televisions 1 Year 1 Year 3 Years

Remote Control 90 Days 90 Days

B/W Televisions 90 Days 1 Year 1 Year

SYLVANIA s obligation under this warranty shall be limited to the repair, including all necessary parts and the

cost of the labour connected therewith, or at our option the exchange of any Home Entertainment product which

shows evidence of a manufacturing defect within the warranty period.

Replacement parts, furnished in connection with this warranty shall be warranted for a period equal to the

unexpired portion of the original equipment warranty.

CUSTOMER OBLIGATIONS

This warranty applies to the product from the original date of purchase at retail. Therefore, the owner must

provide a copy of the original, dated bill of sale. No warranty service will be performed without a bill of sale.

Transportation to and from the service depot is the responsibility of the owner.

WARRANTY EXCLUSIONS

This warranty is extended to SYLVANIA Home Entertainment products purchased and used in Canada. This

warranty shall not apply to appearance or accessory items including but not limited to: antenna, cabinet, cabinet

parts, knobs, batteries, connecting cables. This warranty shall, in addition, not apply to damages due to

handling, transportation, unpacking, set-up, installation, customer adjustments that are covered in the instruction

book, repair or replacement of parts supplied by other than the SYLVANIA authorized service depot, any

malfunction or failure caused by or resulting from abnormal environmental conditions, improper unauthorized

service, improper maintenance, modifications or repair by the consumer, abuse, misuse, neglect, accident, fire,

flood, or other Acts of God, and incorrect line voltage. This Home Entertainment product is only warranted to

the original retail purchaser. This warranty becomes void in the event of commercial or rental use. This warranty

becomes void in the event serial numbers are altered, defaced or removed. SYLVANIA reserves the right to make

changes in design or to make additions to or improvements upon this product without incurring any obligation

to install the same on products previously manufactured. The foregoing is in lieu of all other warranties

expressed or implied and SYLVANIA neither assumes nor authorizes any person to assume for it any other

obligation or liability in connection with the sale or service of this product. In no event shall SYLVANIA or its

SYLVANIA dealers be liable for special or consequential damage arising from the use of this product, or for any

delay in the performance of this warranty due to cause beyond our control.

The purchaser may have other rights under existing provincial or federal laws, and where any terms of this

warranty are prohibited by such laws, they are deemed null and void, but the remainder of the warranty shall

remain in effect.

HOW TO OBTAIN SERVICE

Should this product require service, you may obtain specific information on how to obtain service by contacting

the SYLVANIA Dealer from whom this product was purchased, or by contacting us directly:

SONIGEM SERVICE

300 Alden Road

Markham, Ontario

L3R 4C1

PHONE: (905) 940-5089 FAX: (905) 940-2303

1-800-287-4871

CAUTION: TO PREVENT ELECTRIC

SHOCK, MATCH WIDE BLADE OF

PLUG TO WIDE SLOT, FULLY

INSERT.

Before plugging the UHF/VHF Rod

Antenna into the ANT(enna). IN jack, check

that the pin is not bent. If it is bent, straight-

en the pin as illustrated, then plug the pin

into the ANT(enna). IN jack.

(Rod Antenna is included in 13 inch model

only)

Bent pin

Cable

Plug

(Needs to be straightened) (Straight pin)

NOTE:CHANNEL SET UP MUST BE COMPLETED BEFORE THE SET WILL FUNC-

TION PROPERLY. SEE INSIDE FOR PROCEDURE.

L1354.QX33 01.5.14 5:00 PM Page 1
