United Kingdom •

www.clasohlson.co.uk

English

Ver. 20220725

1 2 3 4

a

b

c

Plug-In Energy Meter

Art.no 36-8705   Model E3182-V2

Please read theentire instruction manual before using theproduct and

then save it for future reference. Wereserve theright for any errors in

text or images and any necessary changes made to technicaldata.

Intheevent of technical problems or other queries, please contact our

Customer Services.

Safety

• Make sure that theelectrical socket that theproduct is plugged into

is easily accessible in case it and theconnected product need to be

quickly disconnected from themains electricity.

• Do not connect products of this type to each other.

• Do not cover theproduct.

• The product is intended only for use indoors.

• Devices connected to theelectricity meter should be of thesame

power rating and specifications.

Product Description

The energy meter measures how much electrical energy anelectric

device uses. Theenergy meter can calculate thetotal cost of running

adevice if theprice of each kWh is entered.

Thedisplay shows, amongst other things, thevoltage, power, energy

consumption, kWh and power factor of theconnected device. This

product should be connected to anearthed socket.

Instructions for use

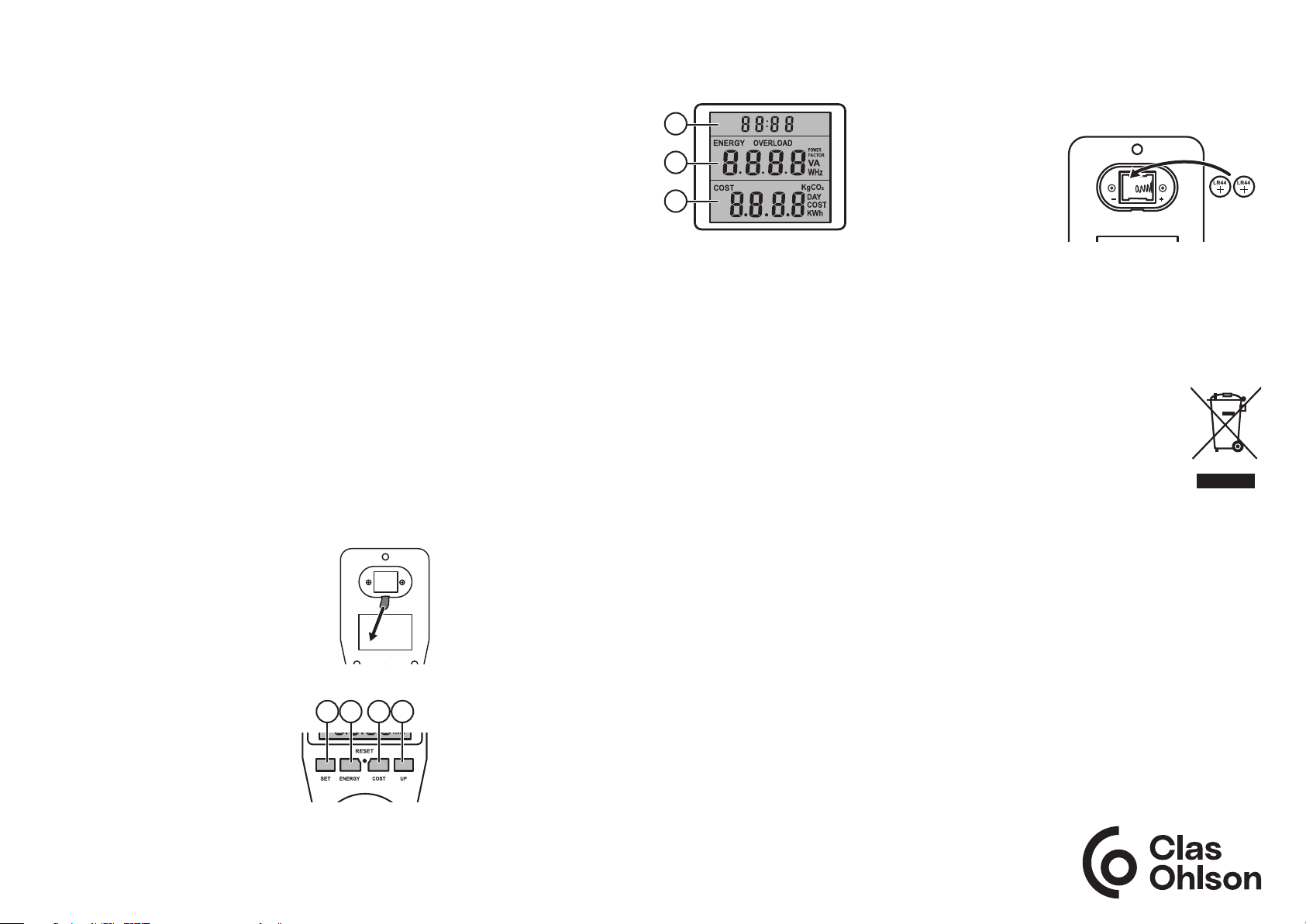

Display

Changing thebatteries

If theenergy meter does not save thedata in its memory, thebatteries

should be changed.

1. Pull out theplastic tab protruding from thebattery

compartment. The energy meter will switch on.

2. Connect theenergy meter to anearthed wall socket.

3. Press [ SET ] to change thevalues displayed

on theENERGY and COST rows at thesame

time. Press [ ENERGY ] or [ COST ] to change

thedisplayed values separately.

Buttons and functions

1. [ SET ] Selects thedisplayed values, theelapsed

time is always displayed but theENERGY

and COST can be shown in 5 ways.

2. [ ENERGY ] Changes thevalue displayed on

theENERGY row.

3. [ COST ] Changes thevalue displayed on

theCOST row.

4. [ UP ] Changes thevalues.

a) Shows thetime elapsed since

aload device of at least 2 W has

been connected. The time stops

when thedevice is switched off

or theload is less than 2 W.

- The starting time is 0:00.

- Initially, thefirst digit represents

minutes, and after 10 minutes

thefirst two digits will represent

minutes and thetwo next digits

seconds.

- After 60 minutes, thefirst digit will represent hours and after 10 hours

two digits will represent hours and two digits minutes.

- After 24 hours thetime will start from 0:00 again and a1 will appear

after ‘Number of active days’ on theCOST row (c).

b) Shows electrical parameters. Press [ ENERGY ] to toggle between:

- Power (W)

- Voltage (V)

- Current (A)

- Frequency (Hz)

- Power factor. The power factor can be used to calculate thereactive

power VA by dividing theactive power W by thepower factor.

E.g. if theactive power is 30 W and thepower factor is 0.6,

thereactive power will be 50 VA (30/0.6=50).

c) Shows thecost and consumption. Press [ COST ] to toggle between:

- The total consumption in kWh

- The set electricity price, COST/kWh (theinitial electricity price value

is 1.00 COST/kWh)

- Number of active days

- CO

2

emission (based on 1kWh generating 0.998 kg CO

2

)

- Total cost

Setting theelectricity price

Can even be set when theenergy meter is plugged in.

1. Press [ COST ] for 3 seconds. The first digit will flash.

2. Press [ UP ] to change thevalue of thefirst digit and/or [ SET ] to move

to thenext digit.

3. Press [ COST ] or wait for 6 seconds to return to display mode.

1. Undo thetwo screws and

remove thebattery cover on

theback of themeter.

2. Remove theold LR44 batteries

and insert 2 new ones, making

sure thepolarity is correct.

3. Refit thebattery cover and

secure it with thescrews.

Care and Maintenance

Always remove theenergy meter from thewall socket before cleaning it.

Wipe with asoft, lightly moistened cloth. Use only mild cleaning agents,

never solvents or corrosive chemicals.

Responsible disposal

This symbol indicates that this product should not be

disposed of with general household waste. This applies

throughout theentire EU. In order to prevent any harm to

theenvironment or health hazards caused by incorrect

waste disposal, theproduct must be handed in for

recycling so that thematerial can be disposed of in

aresponsible manner. When recycling your product, take

it to your local collection facility or contact theplace of

purchase. They will ensure that theproduct is disposed of

in anenvironmentally sound manner.

Specifications

Rated voltage 230 V AC, 50 Hz

Max power 3680 W

Max current 16 A

Min measurable power Approx 2 W

Measuring ranges 175−276 V AC

2–3680 W

0.01–16 A

45−65 Hz

Operang temperature 0−50 °C

Baeries 2 × LR44
