Handleiding Eureka Copper Canyon 1512 Tent

Handleiding

Fly pole

Awning

poles

Roof poles

Center

Wall poles

Corner

Wall poles

Component List:

1 Tent Body with Guy Ropes, 6 Wall Poles, 3 Roof Poles, 1 Fly Pole, 2-3 Awning Poles,

1 Fly, 1 Awning, 1 Divider Curtain, 1 Carry Bag, 1 Stake Bag/Stakes, 1 Pole Bag

2. Assemble the shock corded

poles and divide according to

size and shape. Take care;

make sure that each pole

section is fully seated into the

next. Do not allow the

sections to snap together as

this can damage the ends.

See fig 2.

1. Remove from the carry bag and separate all the components. Unroll and unfold the

fabric top side up, on a clean, dry space and open the doors. If windy, stake down the

windward corner. See fig 1.

4. Raise the tent. Start on one side and insert

black wall poles into the corner elbows. At the

bottom of each pole, insert the pin/ring

(attached to the corner web) into the

bottom of each pole. Next, install a

tan pole at the center. With the

tans, it works best to insert

the ring/pin first and then

fit the pole into the

elbow. See fig 5.

Repeat on the other side until the tent

is at full height and freestanding.

5. Attach all clips to the wall poles. See fig 6.

Stake the tent down through the corner web loops. Stake opposite corners while applying

tension to smooth the floor wrinkles. Next, align the center poles and stake down. Do this

before you add the fly. See fig 7.

Guy Out: This tent has very large straight walls that act differently in high winds. If there are

high winds, carefully follow the guy out instructions on the back side of this sheet.

Awning: If it's raining, lower both corner awning poles to create run-off channels. Loosen

shockcord on each corner pole, lower the angle of each pole and re-tighten guy lines.

Power Port: Open zipper and run extension cord through opening. Close zipper so that it

rests next to the extension cord. Make sure the zipper cover is not twisted or tucked. The

cover must lay flat against the outside of the tent to keep out rain.

Take Down: Pull up all stakes. Release the fly's hook & loop straps. Remove fly. Remove fly

poles. Remove clips from wall poles and pull poles off of the pins. Remove roof poles.

Collapse all poles and stow. Fold the tent onto itself then fold the fly and lay it on tent. Roll

up both towards the open door and stow.

Sweep Out: Inside, at the bottom center of each

door is a sewn-in web loop. Pull this loop to the

outside and stake it down to provide a ready

exit for floor sweepings. See fig 16.

Options: Floor Saver and Gear Loft

6. Attach the fly to the pole. Lay out the fly with the inside side up, on ground at the

front of the tent. Fit the fly pole into the pockets sewn to the hem. The pole runs from

side to side down the center of the fly. Secure the fly to the pole by wrapping the hook

and loop fasteners around the fly pole. See fig 8, 9 and 10.

7. Attach the fly to the tent. Turn the fly assembly over and align

it so that the pole ends point to the windows. Grasp the corners

of the of the fly and drag them up and over the roof poles to

completely cover the roof. ( This is much easier with two people.

) The end of the poles should point out over the windows.

At the corners of the tent, reach under the fly and attach the hook

& loop straps to the wall poles just below the elbow and down

the length of the wall poles, securing the fly in place. See fig 11.

At the bottom/corners of the tent, attach the shockcorded J-hooks

to the nylon rings on the corner web loops. See fig 12.

8. Stake out the attached guy ropes and adjust tension with the

in-line sliders.

9. Install the awning. Open the zippered flaps on the fly. See fig

13. Reach under the fly and clip the awning to the shockcords

on the corner elbows. See fig 14.

Tie a loop at each end of the guy ropes. Fit the pins

of the awning poles into the grommets at the hem

of the awning. Hang a guy rope loop over the pole

pin, stake the rope out and adjust tension as

needed. See fig 15.

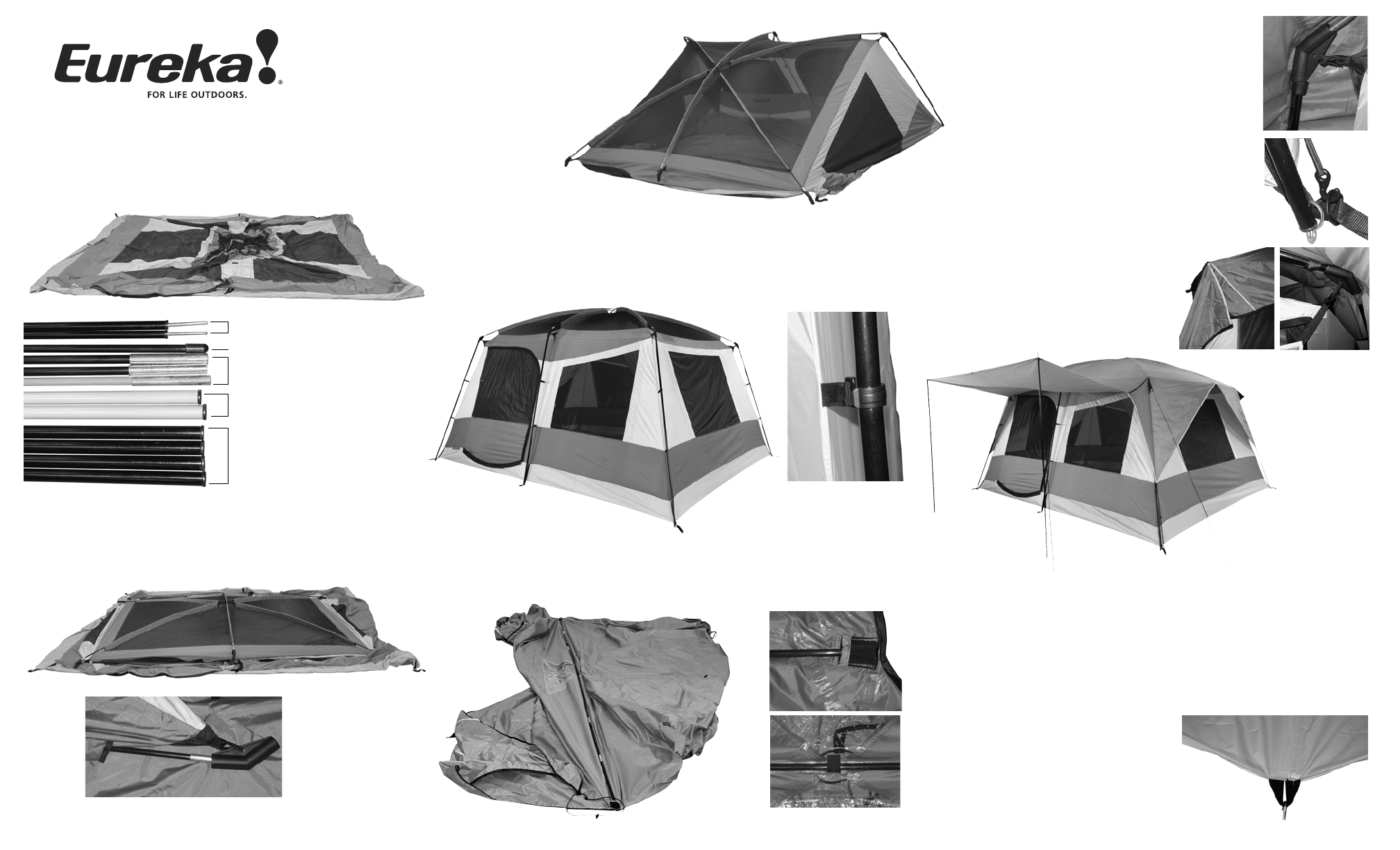

Assembly Instructions for

Copper Canyon 1312 & 1512

YOUR TENT IS READY !

C

B

A

E

F

D

fig 2

fig 1

fig 5

fig 3

fig 6

fig 11

fig 12

fig 15

fig 16

fig 14

fig 13

fig 7

fig 8

fig 9

fig 10

3. Insert both black roof poles into the sleeves sewn on the tent body. They should

run corner to corner crossing in the center.

Fit one end of each into a nylon elbow attached to the roof corners at A and B. Move to

the opposite side, arch the poles and again fit into the nylon elbows at C and D.

Insert the gray roof pole, front to back, into the tan color coded sleeves from E to F. See

fig 3 and 4.

REV B 4.09

NOTE: One arm of each elbow

has interior ribs. Roof poles

insert into this ribbed arm.

Wall poles insert into the

plain arm.

fig 4

1512 has 3

awning poles
