Assembly Instructions

Forte SQ 2 Tents

fig.2

fig.3

fig.1

fig.4

fig.5

fig.6

fig.7

fig.8

fig.10

fig.9

fig.11

Component List: 1 Tent Body, 1 Tent Fly, 4 Part Frame Assembly, 1 Carry Bag,

1 Stake Bag with Stakes, 1 Pole Bag, 1 Pole Repair Splint

NOTE: Do not drop tent bag or pole bag on its end. Do not bounce tent bag on its end to

get the tent out. These actions may cut the shock cord and/or damage the pole ends.

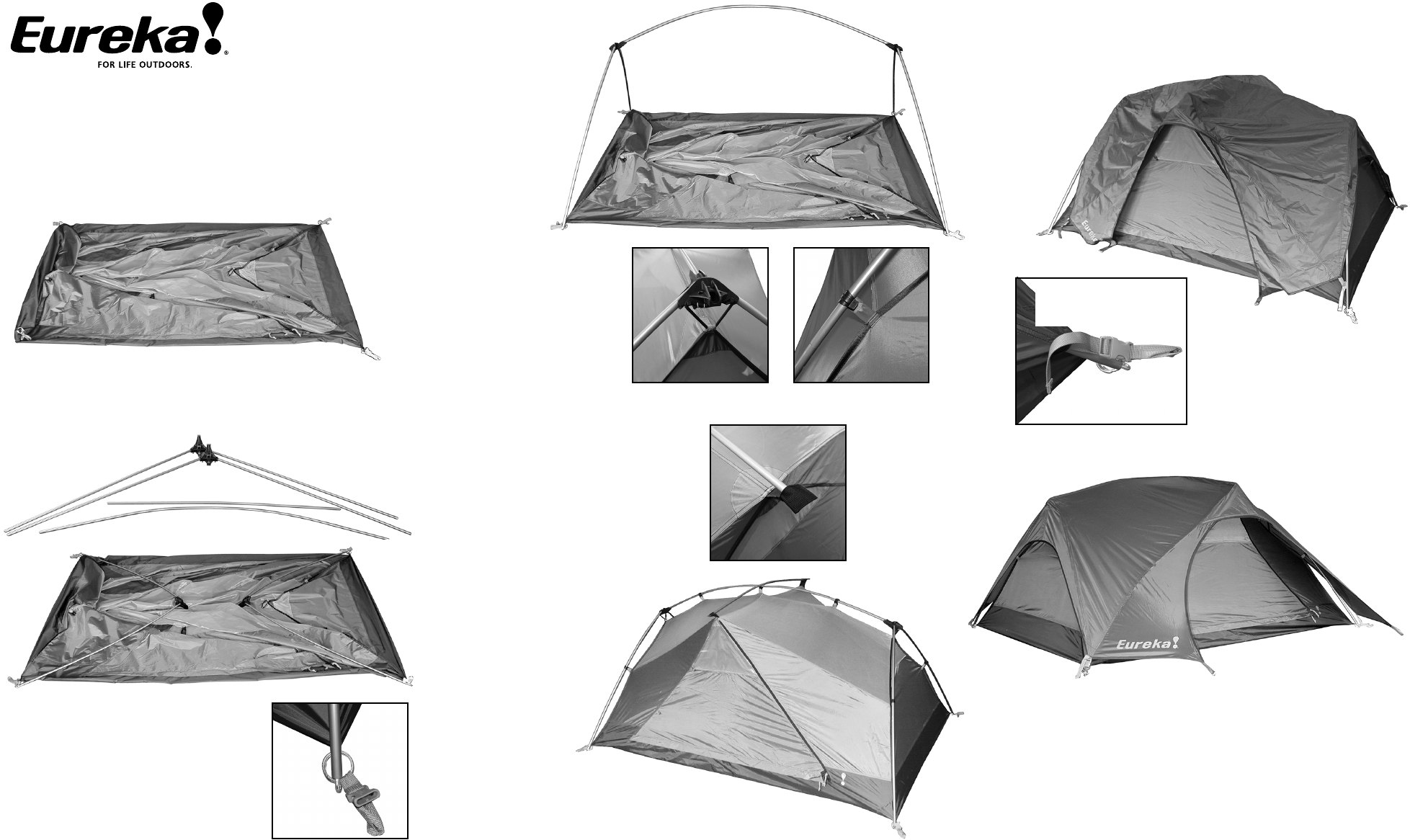

1. Unroll and unfold the tent and lay it on the ground. In windy conditions, stake down

one front corner into wind. See fig.1.

3. Fit the ring/pins into the poles: There are webs

sewn to each corner of the tent. Start at either

end and insert the pins into the bottom of the

poles at that end. Repeat at the opposite end.

See fig. 4.

4. Raise the frame: Start

at either end and insert

the ridge pole into the

hub. Walk to the

opposite end and

grasp both the ridge

pole and the second

hub. Push/curve the

poles until the ridge

pole fits securely

into the second

hub. See fig. 5.

At each corner, attach the web

buckles, from the fly, to their

mates on the tent web. Pull the

web to adjust tension as needed.

See fig.11.

Your tent is ready!

7. Stake the tent down: The tent is

now freestanding. Move it to your

desired location. Stake it down

through the web loops.

Stake opposite corners while

applying tension to smooth

the floor wrinkles and

square the tent.

See fig.9.

6. Install the spreader pole: Lay the pole across

the top, over and perpendicular to the ridge

pole. There are two pockets sewn to the top of

the tent body. One of the pockets has a Velcro

®

closure and the other is plain. It is easier if you

slide the pole into the plain pocket first and

then capture the other end with the Velcro

®

See fig.8 & 9.

2. Join the frame sections on the ground: Fit each pole to its mate or hub. The

sections are shockcorded. Try to keep the poles from snapping together, as

this can damage the ends. It is important to make sure that each section has

firmly seated into the hub. Improperly fit poles may cause the hub to break.

Set the “A” frames over the

tent so that the poles align

to the tent corner webs.

See fig. 2 & 3.

5. Attach the tent body to the

frame: There are two types of

connectors sewn to the tent

body. For the first, hang the

two end shockcords onto the

stand-offs on the hubs.

See fig. 6

Then, work your way down and

across the frame, attaching

the pole clips as you go.

See fig. 7.

8. Attach the fly to the tent: Drape the fly over the top of the tent. Pull the fabric

out and over the hubs and out and over the spreader.

The fly only fits one way. The

entrance on the fly must

align with the door of

the tent. See fig 10.

fig.12

9. Stake out the weather cover: At the front of the tent, pull the stake

out loops on the weather cover taut and stake them down.

Take down: Pull up stakes and open the door. Remove the fly. Un-clip the tent from

the poles. Pull poles out off the pins, collapse the poles and stow in the bag. Fold

the tent and fly. Lay the fly on the folded tent along with the bag of poles. Roll up

all and stow in the carry bag.

Optional: Add durability and versatility to your tent with our “Lite-Set” Footprint. It’s

made of the same fabric as the tent's floor: complete with web loops, grommets,

and side release buckles. The Footprint, in combination with the fly and poles

creates a lightweight, compact basic shelter. This option reduces the carry weight

by more than 25%.
