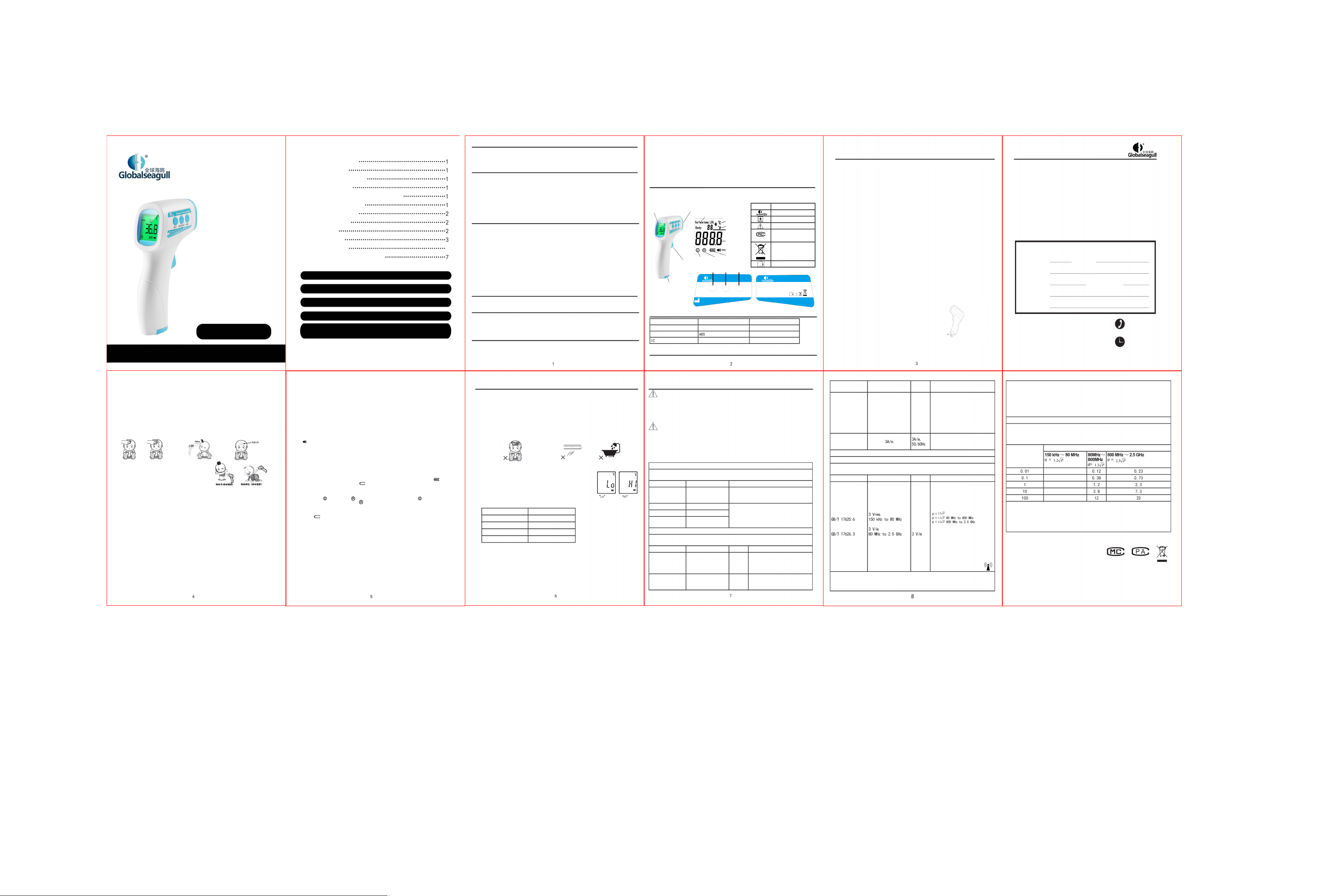

INFRARED THERMOMETER

INSTRUCTION MANUAL

CONTENTS

Scope of Application

Product Feature

Product Characteristics

Contraindications

Special Storage Conditions, Methods

Technical Parameters

Product Description

Key Components

Accessories

Method of Use

Troubleshooting

Electromagnetic Compatibility

6

MODEL: HO-T2028

Thank you for purchasing the Haiou Medical Infrared Thermometer.

In order to use this product safely, please read the Instruction Manual before use.

After reading, please properly keep, in order to look up, reference at any time.

This product is powered by 3V, please use AAA alkaline batteries.

This product is only for the use of measuring body temperature, can not be used

in disease diagnosis; Consult your doctor all treatment.

Symbol Instructions

The trademark

The BF type application part

Note! Check incidental files

License of the People's Republic

of China for manufacturing

measuring instrument

In accordance with the

EU WEEE Directive

Refer to the Instruction Manual

Infrared Sensor

LCD Display

Switch / Measure Button

Battery Cover

Infrared Thermometer

Website: www.haiou.net.cn

MODEL: HO-T2028 Meas. Distance: 3cm-8cm

Meas. Time: ＜1s Supply Voltage: DC 3V

Accuracy:

32.0℃～34.9℃ ±0.3℃;

35.0℃～42.0℃ ±0.2℃

42.1℃～42.9℃ ±0.3℃

Guangdong Haiou Medical Apparatus Co., Ltd.

Nanyuan Industrial Zone, North Liusha,

Puning City. Guangdong, China

SET MEMORY MOD E

Infrared Thermometer

Set Memory Mode

为芯

Supplier

Model

WL-S001

Name

Infrared sensor

Shell 东莞市康柏

HOLTEK

HT66F0185

Instruction Manual 1pc; Certification 1pc；

Battery symbol

Beep symbol

Happy symbol Sad symbol

Celsius symbol

Temperature display

Temperature mode

Fahrenheit

Memory

Scope of Application

Product Feature

Product Characteristics

Contraindications

Special Storage Conditions, Methods

Technical Parameters

Product Description

Key Components

Accessories

The clinical temperature of the patient was measured by infrared method. It is used to measure the

temperature of the forehead. It is suitable for people of all ages to show the body temperature of the patients

by measuring the thermal radiation on the forehead.

Measurement error: ≤ ± 0.3℃.

Fast: Measurement time is less than 1 second.

Ease of Use: One-button measurement and easy operation.

Non-contact: To measure the forehead, don't contact with human skin, avoid cross infection.

Overtemperature tip: Freely set over temperature prompt temperature.

Usage Counter: Button 100,000 times.

Large Screen Display: Large screen LCD backlight display, can clear reading at night.

Data storage: Store 32 groups of measuring data, easy analysis and

comparison.

Modify settings: Can change the setting parameters.

1. According to prevent electric shock type: Internal power devices.

2. According to the degree of shock protection: BF type application part.

3. According to the protection of harmful liquid level: Ordinary equipment.

4. Classified by safety level for use with flammable anesthetic gas mixed with air or with

flammable anesthetic gas mixed with oxygen or nitrous oxide: Devices that cannot be

used with flammable anesthetics.

5. Thermometer classified by operating mode: Continuous operation mode.

6. Thermometer does not have application parts for protection against defibrillation discharge

effects.

7. The thermometer no signal input, signal output.

8. Rated voltage of the device: 3V DC.

9. Non-permanent installation equipment.

10. Electromagnetic compatibility GB 4824 classification: Group 1 of class B equipment.

Not Applicable

Product must be kept

clean and in a dry place.

Do not place the product in a place subject to electric shock.

Do not place the product in above 55℃ or above -20℃, humidity higher than 95% of the

storage in extreme temperature environment.

1. Normal working environment: Temperature: 10℃ to 40℃; Relative Humidity: 85%;

The atmospheric pressure: 70 kpa to 106 kpa

2. Power supply voltage: DC 3V (2 pieces AAA alkaline batteries)

3. Dimensions: 146mm x100mm x 30mm (length x width x height)

4. Weight: 130g (Excluding battery)

5. Measuring range: Temperature model: 32.0℃ to 42.9℃

6. Accuracy: 32.0℃~34.9℃ ±0.3℃; 35.0℃~ 42.0 ℃ ±0.2℃;

42.1℃~42.9℃ ±0.3℃

7. Resolution 0.1℃

8. Power consumption: ≤450mW

9. Measuring distance: 3cm~8 cm

10. Auto Power-off: ＜30s

This product consists of infrared temperature sensor, probe cover, display unit, power

supply circuit, and measurement cir

cuit. The temperature is measured and displayed

using infrared temperature sensing.

Method of Use

Warranty

Precautions:

- The Instruction Manual and Technical Instruction of this product are combined.

- This product has no parts for users to repair or debug, so the technical data of circuit diagram, component list and etc. are not

provided in this manual. If the user's qualified technical personnel can request it from the production enterprise, the production

enterprise will provide.

- Follow the maintenance recommendations in this manual.

- This product is suitable for professional use or home use.

- Keep this product out of the reach of children.

- The ambient temperature used in this product must be between 10℃ ~ 40℃.

- This product must be kept clean and stored in a dry place.

- Do not place this product in a place subject to electric shock.

- Do not place this product in an extreme temperature environment: above 55℃ or below -20℃.

- Do not place this product in an environment with a humidity higher than 95%.

-

The infrared scanner on the front of this product is a fragile part.

- Do not touch the infrared scanner with your fingers.

- Do not expose the infrared scanner to sunlight or immersion in water.

- Do not drop the product.

- If you find any problems, you should contact the seller, you cannot repair the product yourself. Note: If the original parts are

replaced with parts not provided by the manufacturer, measurement errors may result.

- This product is a metering product. It is recommended to check the accuracy of the product with the manufacturer or a

qualified third party agency at one-year intervals.

- Do not use in an environment with electromagnetic interference.

- Dispose of waste and residues at the end of the product's useful life in accordance with local laws and regulations.

- Temperature: below 32℃ display: "Lo", 32℃-42℃ normal display, above 42℃ display "

HI". Working voltage: 2.7-3.5V.

The screen cannot display when below -2.7V, and the IC can work normally between 2.2-5.5V.

Battery installation:

Use 2pcs AAA alkaline batteries, please pay attention that the positive and

negative electrodes of the batteries cannot be reversed.

(As shown on the right)

1. From the day of purchase, this product enjoys a 1-year free warranty with a shopping invoice.

2. We will not provide free warranty service for failures caused by personal reasons of the following

users.

(A) Failure caused by unauthorized disassembly and modification;

(B) Failure caused by accidental drop during use and handling;

(C) Failure caused by lack of reasonable maintenance;

(D) Failure caused by not following the correct instructions in the Instruction Manual;

(E) Failure caused by improper repairs in repair shops not authorized by our company.

3.

Repair services outside the warranty will be charged according to regulations.

4. When requesting warranty service, please consult the after-sales service department.

5. Ensure that repair parts will be provided within five years after the product is discontinued.

Note:

Please keep this card properly. When repair is needed, please contact our customer service center with

this card and invoice. Phone: +86-663- 2758666.

Warranty Registration Card

Product Model:

Store Name:

Username:

User Phone:

User Address:

Body code:

Date of purchase:

　　HO-T2028

After-sales service line

Monday to Friday 8:00-20:00

Saturday 8:00-17:00

After-sales service unit: Guangdong Haiou Medical Apparatus Co., Ltd.

Address: Nanyuan Industrial Zone, North Liusha, Puning City,

Guangdong, China

Telephone: +86-663-2758666

Fax.: +86-663-2905999

Postcode: 515300

Website: www.haiou.net.cn

+86-663-2758666

Tips: If the measured part (forehead) cannot be

guaranteed in a constant environment, it is

recommended to measure with a body surface that

is not exposed (such as the chest or abdomen).

3. Do not discard this product at will. Please dispose of this product's waste or residue in accordance with local laws and

regulations.

4. When the measured person comes from a place where there is a big difference with the measured ambient temperature,

he/she should stay in the measured environment for at least 5 minutes, and not measure until the temperature is consistent with

the ambient temperature, otherwise the measured result will be affected.

5. Fever patients with forehead sweating, use of cold compresses and other cooling measures will make the measurement

results low, should be avoided in this case.

6. When the product is taken out from

a place with a large difference in temperature from the environment to be measured, the

product should be placed in the environment for 20 minutes before use.

7. The surrounding environment of the tested person should be stable, and it should not be measured in places with large airflow

such as fans and air vents of air conditioners.

8. Do not use this product in direct sunlight.

9. It is recommended to measure about 3 times during the measurement, and the interval between each measurement is 3~5

seconds, which is based on the most displayed data.

Use correctly:

The correct use is the key to measurement accuracy, otherwise it may cause measurement errors. Because infrared temperature

measurement has higher requirements on the surrounding environment, please follow the instructions below.

1. In shutdown mode, press the "Switch / Measure" button to turn on the device. After the LCD screen is fully dis

played for 1 second,

displays "---℃ or ----℉" indicates that the device enters the standby state (In the standby time about 30 seconds if tere is no button

operation, the product will automatically shut down); In standby mode, press the "switch / measure" button to measure, The

measurement is completed when the LCD screen displays the temperature or after the beep sounds, and the time is about 1 second.

Tip: The product cannot move out of the measurement site when the measurement is not completed.

2. When measuring body temperature, point the product directly above the center of the forehead and above the center of the

eyebrow and keep it vertical. The measurement site must not be covered by hair. The recommended distance between the product

and the forehead is about 3cm ~ 8cm. (As shown below)

④ Measurement site

③ 3cm ~ 8cm from the

center of the forehead

② Erase sweat

① Pluck your hair

3. Memory query: In the standby state, press the "MEMO" button, the screen displays the last measurement data, you can view

up to 32 sets of measurement data. Each press of "MEMO" can query the previous set of data. Press the "MEMO" button for 3

seconds to clear the memory data.

4. In the standby state, Press the "MODE" button for 3 seconds to enter the setting mode

4.1 Over-temperature prompt setting: Press the "MODE" button for 3 seconds, the LCD display shows: "F1", and then jump to

the 38.0℃/ 100.4°F interface (Default is 38.0℃ / 100.4°F), enter the Over-temperature prompt setting, press the "MEMO" button

each time to increases by 0.1℃/0.1°F, press the "MODE" button each time to decrease by 0.1℃/0.1°F. Press

"SWITCH" to

save and exit the current setting. (Automatically save and exit the setting after 15 seconds of no operation)

4.2 Overall temperature offset setting: Press the “MODE” button for 3 seconds, the LCD display shows: "F1", and then jump to

the 38.0℃/ 100.4°F interface, press "SET" button, the LCD display shows "F2", and then jump to the 0.0℃/0.0°F interface

(Default is 0.0℃/ 0.0°F), at this time, press the "MEMO" button each time to increase by 0.1℃/0.1°F, press the "MODE" button

each time to decrease by 0.1℃/0.1°F. Press "SWITCH" to save and exit the current setting. (Automatically save and exit the

setting after 15 seconds of no operation)

5. Prompt sound setting: In the standby state, press the "SET" button 3 seconds to turn on or turn off the sound. The speaker

symbol is displayed when the sound is turned on,

and disappears when the sound is turned off.

6. Proofreading mode (Use in production settings, non-professionals are strictly prohibited from using this function without

professional tools)

Press the "SWITCH" and "SET" + "MODE" button simultaneously for 2 seconds to enter NTC calibration, press the "SWITCH"

and "MODE" button simultaneously for 2 seconds to enter Thermopile calibration at 37℃.

7. The LCD background color of the screen shows that it is always green when measuring the surface temperature. In the body

temperature mode, the body temperature is green at 34-37.3℃, orange at 37.4-38℃, and red above 38.1℃.

8. Lo / HI display instructions: Body temperature below 32℃ displays Lo, body temperature above 42℃ displays HI. When the

ambient temperature is lower than 10℃ or higher than 45℃, the device stops working due to environmental factors and displays

"ERR".

9. Battery level display: When the battery power can

provide the normal use of the device, the battery symbol " " appears.

When the battery power is low, the battery symbol " " appears to remind you to replace the battery. When the battery power

is very low, the device will not work.

10. Press the switch to turn on and enter the standby mode. If there is no operation during the period, the device will be

automatically turned off after 15 seconds. The static current after turning off the device cannot be greater than 30UA.

11. The happy symbol " " and sad symbol " ", in body temperature mode, the happy symbol " " is displayed when the

backlight is displayed in green, and the sad symbol " " is displayed in other colors.

Setting adjustment:

This product can modify the default setting parameters. Before leaving the factory, factory settings have been made for different

sales markets. It is recommended not to modify the factory default values. If there is a need to modify, please follow the steps

below.

1. Press the "SWITCH" to turn on the device; press the "SWITCH" to measure the temperature at a distance of 3-8cm to the

human body or object, the response time is about 1 second. The temperature mode is Surface temperature / Body temperature;

press the "MODE" button to switch the Body temperature / Surface temperature.

2. Temperature unit: Celsius unit is ℃, Fahrenheit unit is °F. Press the "SET" button to switch the unit between Celsius ℃ or

Fahrenheit °F. When the device is turned on, the default is the unit from the last shutdown.

Battery replacement:

1. The product uses 2pcs AAA alkaline batteries, which can theoretically be used continuously for about 20,000 times. When the

battery symbol " " appears and flashes on the screen, it means that the battery is low and the battery needs to be replaced.

2. Open the battery cover to replace the battery, and pay attention to whether the positive and negative electrodes are placed in the

correct position.

3. The rechargeable battery does not meet the product requirements, please do not use it.

4. When not in use for a long time, it is recommended to remove the battery to prevent battery leakage from damaging the product.

Routine maintenance:

The product does not require frequent maintenance during normal use. When the following conditions are found, please follow the

instructions.

1. External dirt: Wipe the dirt with a clean soft cloth and water, or wipe with

a cotton swab and medical alcohol. Wiping with medical

alcohol can also hold concurrently antiseptic action. Be careful not to add too much water or alcohol to prevent damage to the

product if it flows into the interior.

2. Internal dirt: The internal infrared scanner is an important device. Do not touch or press with your fingers or other objects,

otherwise it will affect the accuracy of the measurement. When the infrared scanner is found to be dirty, wipe it with a cotton swab

moistened with 75% absolute alcohol.

3. If not used for more than one week, please pay attention to the cleanliness of the thermometer before use.

Note: do not use other chemicals to wipe the infrared scanner (will cause damage to the infrared scanner).

Storage:

Store in a dry, cool place out of direct sunlight.

Sweating, after cold compresses, after taking medicine

At the air vent After bathing

Troubleshooting

FAQ 1: The temperature cannot be displayed, and all of them are displayed after power on (4 "8" shapes). Where is

the problem?

Answer: A non-contact infrared thermometer can be basically judged to be caused by insufficient battery power. You

can try to replace the battery with a new one.

FAQ 2: When the body temperature of some human bodies is measured in the same environment, "Lo" appears.

What is the reason?

Answer: The reasons to be excluded are as follows:

1. The measurement distance is too far. At this time, the temperature of the air may be measured. The Instruction

Manual requires a distance of 3cm~8cm.

2. "Lo" may appear when the forehead of measured human body is covered with hair, sweat is on the forehead, has

been pasted with antipyretic paste or take antipyretic drugs, the forehead is pointed at the air

conditioner, and strong

wind is blown across the surface. Rest for 5-10 minutes in a stable environment before measuring.

Electromagnetic compatibility

A: There are very few people whose surface temperature is lower than that of ordinary

people. If an individual shows "Lo" every time, the forehead temperature can be

compared with others by induction with the back of the hand, and then try others for a

comparison.

B: When the body temperature of an individual (not all human bodies) appears "Lo", it

can be determined when the body temperature is normal, and the main concern is the

overtemperature prompt (the "HI" appears in the overtemperature prompt). The

appearance of "Lo"indicates that the surface temperature of the forehead of the human

body is very low at this time, exceeding the display range of the product.

The main reasons why the screen shows Lo:

Reason for displaying Lo information

Covered by hair or sweat during

temperature reading

Make sure there are no obstacles

on the forehead

Suggestion

The measurement distance is too far

Recommended measurement

distance is 3cm~8cm

Cold air blows on forehead

Wait for 10 minutes after cold

compress

Make sure no cold air is blowing

directly on the forehead

Forehead just cold applied

体温

Display

体温

Display

FAQ 3: Does the product harm the human body and does it have radiation to the human body?

Answer: The principle of the product is to calculate the body temperature by collecting the infrared radiation of the

human body. The product does not directly contact the human body and does not cause cross infection of different

human bodies. The infrared thermometer produced by our company receives infrared energy released by the

human body. No harm to human body, hope that the majority of consumers can use it with confidence.

FAQ 4: What is the difference between a non-contact infrared thermometer and a mercury thermometer?

Answer: 1. The contact electronic thermometer or mercury thermometer needs to directly contact the human body,

which is likely to cause cross infection between different human bodies.

2. The mercury thermometer has a long measurement time, is not easy to read and is not sa

fe, especially when

measuring the temperature of children, because of hyperactivity and not easy to clamp, to bring great

inconvenience to the parents.

- H0-T2028 meets the requirements of electromagnetic compatibility of YY0505 standard .

- Users should install and use according to the electromagnetic compatibility information provided in the

accompanying documents.

- Portable and mobile RF communication equipment may affect the performance of the H0-T2028. Avoid strong

electromagnetic interference when using it, such as near mobile phones, microwave ovens, etc.

- Guidance and manufacturer's declaration are detailed in the Annex.

- The equipment or system should not be used close to or stacked with other equipment. If it must be used close to

or stacked, it should be observed to verify that it can operate normally in its used configuration.

- Use of accessories and cables other than thos

e specified by the manufacturer of the equipment or system as

spare parts for internal components may result in increased emissions of the equipment or system or reduced

immunity.

- Equipment and systems operating below the minimum amplitudes or minimum value described in this manual

may cause inaccurate results.

Attention:

Warning:

Annex:

Guidance and manufacturer’s declaration – electromagnetic emissions

The H0-T2028 equipment is intended for use in the electromagnetic environment specified below. The customer

or the user of the H0-T2028 should assure that it is used in such an environment.

Launch test

Compliance

A Guide to the Electromagnetic Environment

GB4824 RF emission

GB4824 RF emission

GB17625. 1 harmonic

emission

GB17625. 2 Voltage

fluctuation / flicker emission

Group 1

Class B

Not applicable

Not applicable

The HO-T2028 Infrared Thermometer uses

RF energy

only for its internal functions. Therefore, its RF emissions

are very low and may not cause any interference to

nearby electronic equipment.

The HO-T2028 Infrared Thermometer is suitable for use in

all facilities in the home and directly connected to the public

low-voltage power supply network for the home.

The HO-T2028 is intended for use in the electromagnetic environment specified below.

The customer or the user of the HO-T2028 should assure that it is used in such an environment.

Immunity test

Compliance

level

GB9706 test level

Electromagnetic environment – guidance

Electrostatic discharge

(ESD)

GB/T 17626.2

±6kV Contact

±8kV Air

±6kV Contact

±8kV Air

Floors should be wood, concrete, or

ceramic tile. If floors are covered with

synthetic material, the relative humidity

should

be at least 30%

The grid power supply should be of the

quality used in a typical commercial or

hospital environment.

Electrical fast transient

GB/T 17626.4

±2kV power line

±1kV I/O lines

Not Applicable

Guidance and manufacturer’s declaration – electromagnetic immunity

Voltage dips, short

interrupts and voltage

variations on power

supply input lines

GB/T 17626.11

<5% UT for 0.5 cycle (at

UT,> 95% dips) 40% UT for

5 cycles (at UT, 60% dips)

70% UT for 25 cycles (at UT,

30% dips) <5% UT for 5s (at

UT,> 95% dips)

Surge GB/T 17626.5

±1kV differential

±2kV common

Not

Applicable

Not

Applicable

Not

Applicable

The grid power supply should be of the

quality used in a typical commercial or

hospital environment.

The grid power supply should be of the

quality used in a typical commercial or

hospital environment. If the user of the

HO-T2028 needs to run continuously during

power interruption, it is recommended that

the HO-T2028 be powered by an

uninterruptible power supply or battery.

Power frequency

magnetic field (50/60Hz)

GB/T 17626.8

Power frequency magnetic fields should be

at levels charac

teristic of a typical location in

a typical commercial or hospital

environment.

Guidance and manufacturer’s declaration – electromagnetic immunity

Note: UT refers to the AC network voltage before the test voltage is applied

The HO-T2028 is intended for use in the electromagnetic environment specified below.

The customer or the user of the HO-T2028 should assure that it is used in such an environment.

Immunity test

Compliance

level

GB9706 test level

Electromagnetic environment – guidance

Conducted RF

Radiated RF

Recommended isolation distance

Portable and mobile RF communications

equipment should not be used closer to any

part of the HO-T2028 than the

recommended isolation distance, including

cables. This distance should be calculated

by a formula corresponding to the frequency

Among the

m, P is according to the

transmitter's maximum output rated power

provided by the transmitter manufacturer, in

watts (W), and d is the recommended

isolation distance in meters (m).

The field strength of the fixed RF transmitter

is determined by surveying the

electromagnetic field a. In each frequency

range b should be lower than the compliance

level.

Interference may occur near the

equipment marked with the following

symbol.

a. The field intensity of fixed transmitters, such as: base stations for wireless (cellular / cordless) telephones and

ground mobile radios, amateur radio, AM (amplitude modulation) and FM (frequency modulation) radio broadcasts,

and television broadcasts. Cannot be predicted accurately.

To assess the electromagnetic environment of fixed RF transmitters, surveys of electromagnet

ic sites should be

considered. If the measured field strength of HO-T2028 is higher than the RF compliance level of the above

application, you should observe HO-T2028 to verify its normal operation. If abnormal performance is observed,

supplementary measures may be necessary, such as reorienting or positioning the H0 T2028.

b. In the entire frequency range from 150 KHz to 80 MHz, the field strength should be lower than 3 V/m.

HO-T2028 is expected to be used in an electromagnetic environment where radiated RF disturbances are controlled.

According to the maximum output power of the communication equipment, the purchaser or user of HO-T2028 can

prevent electromagnetic interference by maintaining the minimum distance between the portable and mobile RF

communication equipment (transmitter) and HO-T2028.

Recommended i

solation distance between portable and mobile RF communication equipment and HO-T2028

Note 1: At 80 MHz and 800 MHz, the higher frequency band formula is used.

Note 2: These Guides may not be suitable for all situations. Electromagnetic wave propagation is affected by

absorption and reflection from buildings, objects, and humans.

For the rated maximum output power of the transmitters not listed in the table above, the recommended separation

distance d, in meters (m), can be determined using the formula in the corresponding transmitter frequency column,

Here P is the transmitter's maximum output rated power provided by the transmitter manufacturer, in watts (W).

Note 1: At 80 MHz and 800 MHz, the higher frequency range formula is used.

Note 2: These guides may not be suitable for all situations. E

lectromagnetic propagation is affected by absorption and

reflection from buildings, objects and people.

Separation distance according to frequency of transmitter (m)

Rated maximum output

power of transmitter (W)

Not Applicable

Not Applicable

Not Applicable

Not Applicable

Not Applicable

Registrant Name/Manufacturer: Guangdong Haiou Medical Apparatus Co., Ltd.

Registrant's Residence/Production Address: Nanyuan Industrial Zone, North Liusha,

Puning City, Guangdong, China

Phone: +86-663-2758666 Fax: +86-663-2905999 Postcode: 515300

Sales Hotline: +86-663-2758666

Website: www.haiou.net.cn

Manual preparation date: 2020-03-01

Download de handleiding in het Nederlands en/of Engels (PDF, 3.37 MB)

(Denk aan het milieu en print deze handleiding alleen als dat echt noodzakelijk is)

Loading…
