Date Issued: 10/25/17 IS-11302LED-CB

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main

fusebox before starting and during the installation.

1

3

4

2

4) Make wire connections. Reference chart below for correct con-

nections and wire accordingly.

5) Carefully push backpan[1] to ceiling, attach backpan[1] to the

outlet box[2] using mounting screws[3]

6) Make sure all connections remain secure and wires do not get

pinched.

7) Attach diffuser[4] to backpan[1] by pushing diffuser against

backpan[1] until it snaps into place.

WARNING:

This xture is intended for installation in accordance with the

National Electrical Code (NEC) and all local code specications.

If you are not familiar with code requirements, installation by a

certied electrician is recommended.

CLEANING:

Always be certain that electric current is turned off before cleaning.

Only a damp cloth should be used. Harsh cleaning products may

damage the nish.

FCC INFORMATION:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following mea-

sures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

INSTALLATION:

• Read and understand all instructions and illustrations com-

pletely before proceeding with assembly and installation of

xture.

• If you have any doubts about how to install this xture, or if the

xture fails to operate completely, please contact a qualied

electrician.

• All parts must be used as indicated in the instructions. Do not

substitute any parts, leave parts out, or use any parts that are

worn or broken. Failure to obey this instruction could invalidate

the UL listing, C.S.A. certication, and/or ETL listing of this

xture.

• Fixture is to be connected to a single branch circuit.

• Mounting surface should be clean, dry, flat and 1/4” larger than

the xture housing surface.

INSTRUCTIONS:

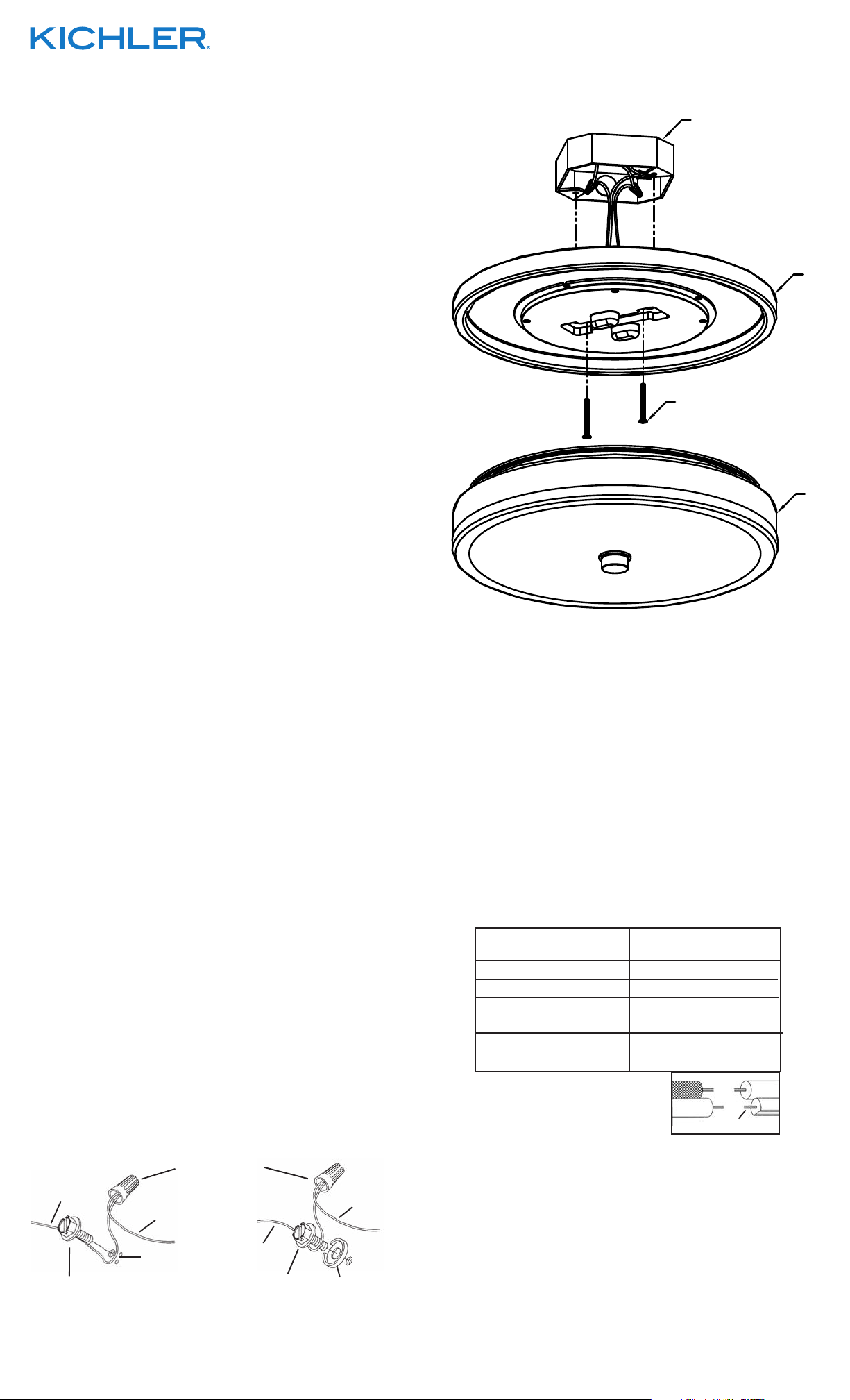

1) Position the backpan[1] over the outlet box[2]. Line up mount-

ing holes in backpan[1] with mounting holes on outlet box[2].

Secure the backpan[1] to the outlet box[2] using mounting

screws[3] provided.

2) Loosen mounting screws [3] and remove backpan[1] from

outlet box[2] make electrical connections.

3) Grounding instructions: (See Illus. A or B).

A) On xtures where mounting strap is provided with a hole

and two raised dimples. Wrap ground wire from outlet box

around green ground screw, and thread into hole.

B) On xtures where a cupped washer is provided. Attach

ground wire from outlet box under cupped washer and

green ground screw, and thread into mounting strap.

If xture is provided with ground wire. Connect xture ground

wire to outlet box ground wire with wire connector. (Not pro-

vided.) After following the above steps. Never connect ground

wire to black or white power supply wires.

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLET BOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLET BOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

A

B

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire
