BINOCULAR OWNER'S MANUAL
Complete Setup & Operating Instructions

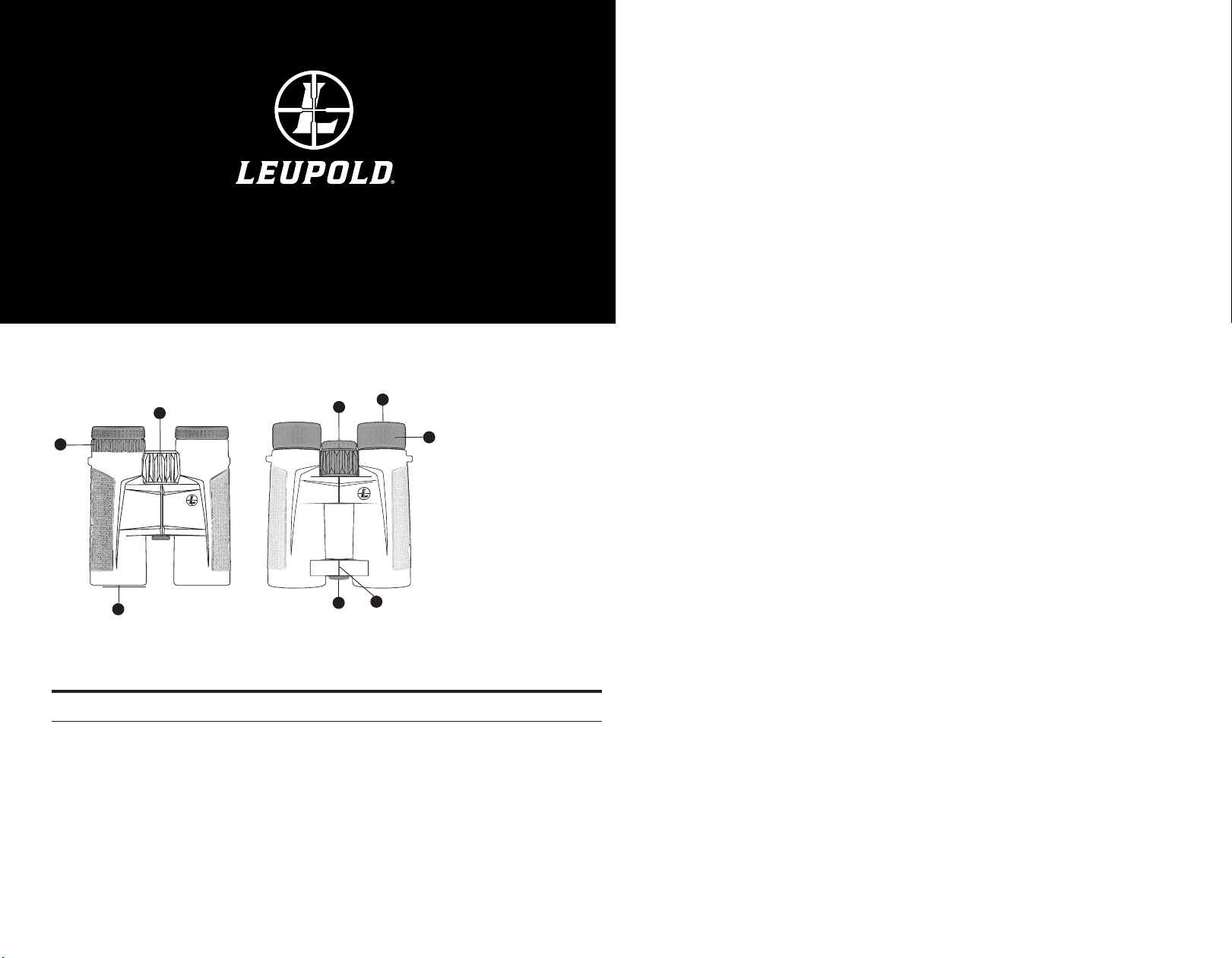

PARTS OF THE BINOCULAR
1 Objective Lens
2 Diopter Adjustment
(right eye)
3 Center Focus Wheel
4 Locking Diopter Adjustment
5 Eyepiece Lens
6 Eyecup
7 Hinge
8 Tripod Screw
3
4
5
6
7
8
2
1
We design, build, and test our binoculars with a single-minded focus:
to make sure they'll perform forever. You won't outlast us. You can't outperform us.
USING YOUR LEUPOLD BINOCULAR
Using your Leupold binocular is very simple. However, you must set them to match your eyesight before use. This is
done by adjusting the interpupillary distance and focusing the binoculars to your own visual acuity.
ADJUSTING INTERPUPILLARY DISTANCE
The interpupillary distance is simply the distance between the pupils of your eyes. To ensure a clear, single image,
the binocular must be set so that the center of each ocular lens is the same distance apart as your own pupils.
To set the interpupillary distance:
1. Hold the binocular up to your eyes in the normal manner
2. Look through the binocular with both eyes open.
3. Move the two barrels (halves) up or down until you see a single, circular image.
SETTING THE DIOPTER ADJUSTMENT
The diopter adjustment allows you to focus the binocular to your individual eyesight. This is important, as a
properly focused binocular will prevent eye strain and provide you with a crisp, sharp image.
NOTE: The diopter adjustment on center focus models is located on the center focus dial. Models utilizing an
eyepiece diopter design will have the diopter located on the right eyepiece.
TO SET THE DIOPTER ADJUSTMENT ON RIGHT EYEPIECE DIOPTER ADJUSTMENT MODELS:
1. View an object about 100 yards in the distance.
2.
Cover the right objective lens with your hand.
3. Adjust the center focus wheel (located between the two barrels) until the image presented to your left
eye is clear and sharp.
4. Cover the left objective lens with your hand.
5. Adjust the diopter adjustment dial located around the right barrel, near the eyepiece, until the image
presented to your right eye is clear and sharp.
Your binocular is now focused for your eyesight. To make any adjustments in the field, simply turn the center
focus dial while viewing through both barrels.
TO SET THE CENTER FOCUS DIOPTER ADJUSTMENT:
1. Find an object roughly 100 yards away.
2. Cover the right objective lens with your hand.
3. Adjust the center focus wheel until the image you’re looking at with your left eye is clear and sharp.
4. Switch and cover the left objective lens with your hand.
5. Pull up on the diopter adjustment dial located on top of the center focus wheel. The diopter wheel
should now spin freely.
6. Rotate the center focus wheel until the image your’re looking at with your right eye is clear and sharp.
7. Push the locking diopter dial until it locks in place.
The binocular is now focused for your specific eyesight. You will need to use the center focus wheel when
glassing in the field.
CLEANING
You can clean the fully armored body by simply wiping off any accumulated dirt or dust.
TO CLEAN LENSES
For optimal cleaning, use the Leupold Lens Cleaning System. Begin by using the brush to whisk away dust.
Then use the microfiber cleaning tip, which is impregnated with a special non-liquid cleaning compound,
to clean the glass. If you don’t have a Leupold Lens Cleaning System, use a cotton swab, lens cloth, or lens
brush and pure acetone, high-grade glass cleaner, or pure water to wipe the lens clean.
A NOTE FOR THOSE WHO WEAR EYEGLASSES
Leupold binoculars feature eyecups you can twist, or push up and down to accommodate the eye relief
distance required when wearing eyeglasses.
