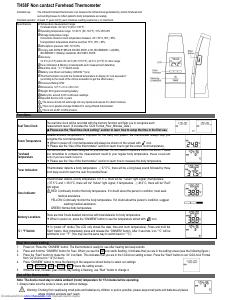

TH58F Non contact Forehead Thermometer

Functions

Real Time Clock

The real time clock will be recorded with the memory function and help you to recognize each

measurement result. (It includes the 12/24 Format_Hour_Minutes_Date.)

 Please see the “Real time clock setting” section to learn how to setup the time in the first use.



Room Temperature

Suitable ambient temperature is important for the baby and patient, the thermometer always help you

recognize the room temperature.

 When in power off, room temperature will always be shown on the screen with icon.

 Please see the “Use of the thermometer” section to learn how to get the correct room temperature.

Forehead

Temperature

The thermometer has been designed for practical use. It’s not meant to replace a visit to the doctor. Please

also remember to compare the measurement result to your regular body temperature. Please consult with

doctor if you have health concerns

 Please see the “Use of the thermometer” section to learn how to measure the body temperature.

Fever Indication

If thermometer detects a body temperature ≧37.5°C, there will be a long beep sound followed by three

short beep sound to warn the user for potential fever.

Zone Indicator

If thermometer detects a body temperature <37.5°C, there will be " Green" light signal; if temperature

≧37.5°C and < 38.0°C, there will be" Yellow" light signal; if temperature ≧38.0°C, there will be" Red"

light signal.

RED: Continually monitor the body temperature. If in doubt about the person’s condition, must seek

medical assistance.

YELLOW: Continually monitor the body temperature. If in doubt about the person’s condition, suggest

seeking medical assistance.

GREEN: Normal body temperature.

Memory Locations

There are total 9 sets detailed memories with time/date/site for body temperature.

 When in power on, press the “ON/MEM” button to see the temperature stored with icon.

°C / °F Switch

 In “power off” mode (The LCD only shows the date, time and room temperature). Press and hold the

“Start” button, then immediately press and release the “ON/MEM” button. After 3 seconds, icon “°C” will be

switched to icon “°F”. (You may use the same way to switch back to “°C”)

Real time clock setting

1. Power on: Press the “ON/MEM” button. The thermometer is ready for use after hearing two beep sounds.

2. Press and hold the “ON/MEM” button for 5sec. When you see the Set icon starts flashing, it indicates that you are in the setting screen.(see the following figure.)

3. Press the “Start” button to make the “24” icon flash. This indicates that you are in the 12/24-hour setting screen. Press the “Start” button to set 12/24-hour Format

from “24”(24-hour) to “12”(12-hour).

4. Press “ON/MEM” button to move the flashing in the sequence shown below to select our settings:

hourminutesyearmonthdayleave the setting screen.

5. While the hour, minutes, year, month, day setting is flashing, use “Start” button to change it.

Use of the thermometer

Note: The device must stay in stable ambient (room) temperature for 15 minutes before operating.

1. Always make sure the probe is clean, and without damage.

Warning: Choking from swallowing small parts and batteries by children or pets is possible, please keep small parts and batteries at places

where children and pets can’t reach.

Intended use:

The infrared forehead thermometer can measure the infrared heat generated by central forehead and

surrounding tissues to reflect patient’s body temperature accurately.

Intended operator:

At least 11 years old (5 years intensive reading experience), no maximum.

Specifications

 Temperature measurement range:

Forehead mode: 34~42.2°C (93.2~108°F)

 Operating temperature range: 10~40°C (50~104°F), 15%~85% RH

 Storage temperature range:

It should be stored at room temperature between -20~+50°C, RH≦85%

Transportation temperature shall be less than 70°C, RH≦95%

 Atmospheric pressure: 800~1013 hPa

 Comply with ASTM E1965-98, EN ISO 80601-2-56, IEC/EN60601-1-2(EMC),

IEC/EN60601-1(Safety) standards, ISO10993, RoHS.

 Accuracy:

±0.2°C (0.4°F) within 35~42°C (95~107.6°F), ±0.3°C (0.5°F) for other range.

 Fever Indication & Memory locations(with each measurement date/time)

 Real time clock, °C / °F Switch mode

 Battery: one lithium cell battery (CR2032 *1pcs)

 This thermometer converts the forehead temperature to display its “oral equivalent.”

(according to the result of the clinical evaluation to get the offset value)

 Enclosure Rating: IP22

 Dimensions: 127.7 x 41.4 x 36.0 mm

 Weight: 65.8 grams including battery

 Battery life: around 3,000 continuous readings.

 Expected Service Life: 4 years

The device should not submerge into any liquids and expose it to direct moisture.

There is no gender and age limitation for using infrared thermometer.

This is not an AP or APG product.

Figure1
