Introduction

Thank you for purchasing a quality WaterMaster

timer. You will enjoy many

years of satisfactory service, especially if proper installation and care is observed.

Please read the manual completely before installation, programming and opera-

tion. For ease of use, the manual is in step by step sequence of installing, setup

and operation.

The WaterMaster

timer keeps your yard beautiful whether you are at home or

away. WaterMaster

gives you convenience and flexibility, letting you use an

automatic watering program or override the automatic program for special

watering needs.

The WaterMaster

timer divides your property into four or six stations with

watering durations from 1 minute to 99 minutes each. You can water your yard

up to 3 times every day. Each start time will operate all stations in sequence.

You may use one of two watering schedules. One schedule will water on specific

days of the week. The other will water by periods - every other day or every 3rd

day. The WaterMaster

timer includes a manual override feature that allows you

to water all stations sequentially, or to manually water one station at a time.

Note: Illustrations in this booklet show only 4 station terminals & 4 stations on the

display. 6 station products are fitted with 6 station terminals & show 6 stations on

the display.

Note: Always check local plumbing and electrical codes for requirements when

installing the timer, transformer, and sprinkling system. Use only with household

current with an appropriate transformer matching your voltage and plug type.

Help

Before returning this timer to the store, contact Orbit

´Technical Service at:

1-800-488-6156.

Listings

The timer is tested to UL-1951 standard and is ETL

listed. Appropriate inter-

national models are CETL

and CE

approved.

Trademark Notice

WaterMaster

is a registered trademark of Orbit

Irrigation Products, Inc.

Installation

Timer Location

Select a location that is near a standard electrical outlet. If this is not possible, a 16 gauge

electrical cord can be used to add length between the timer and the transformer (up

to several hundred feet). Avoid using an outlet controlled by an On/Off switch.

2. The timer should not be exposed to water or operated at temperatures below 14°

degrees or above 113° degrees Fahrenheit. (-10° c + 45° c)

Mounting the Timer

1. Screw a No. 8 screw at eye level leaving the screw

head extended out from the wall about 1/8 inch. Use

expanding anchors in plaster or masonry if necessary.

2. Slip the keyhole in the back of the timer over the

extended screw.

3. Screw a No. 8 screw through each of the two holes at

the bottom of the timer box into the wall. (See Figure 1.)

Wiring the Electric Valves

1. If the distance between the timer and

valves is under 700 feet, use WaterMaster

sprinkler wire or 20 gauge plastic jacketed

thermostat wire to connect the timer and

the valves. If the distance is over 700 feet,

use 16 gauge wire. The wire can be buried

in the ground; however, for more protec-

tion, wires can be pulled through PVC

pipe and buried underground. Be careful

to avoid burying the wires in locations

where they could be disturbed by digging

or trenching in the future.

2. Each valve has two wires. One wire is to be con-

nected as the common. All of the common wires for all the valves can be

connected together to one common wire going to the timer. The other valve wire

is to be connected to the specific station wire that is to control that valve.

(See Figure 2.)

3. All wires should be joined together using wire nuts, solder, or vinyl tape. For addi-

tional protection to waterproof connections, a WaterMaster

grease cap can be used.

4. To avoid electrical hazards, only one valve should be connected to each station.

5. The rated output is 24 volts AC at less than 0.240 Amps. Do not use solenoids

that exceed these values.

Installation

Connecting Valve Wires to the Timer

1. Remove cover by sliding it down.

2. Determine which valve you want to connect to

which station. Connect each valve wire to its station

terminal (labeled 1-6) by inserting the bare wire.

3. Connect the common wire to the terminal screw

labeled “COM”. (See Figure 3.)

Installing Batteries —For Program Back-Up

1. Install 2 AA (1.5 volt) alkaline batteries

in the battery compartment. (See Figure 4.)

CAUTION: Do not allow the battery to contact

the terminal strip.

2. With weak or no batteries, the program can

malfunction or be erased with power failure. If this happens, disconnect the

transformer, install fully charged batteries, plug in the transformer, and repro-

gram the timer.

Connecting the Transformer

1. With the cover off, find the two terminal

holes labeled “24V.” Make sure the trans-

former is not plugged in. Insert one of

the two power leads from the transformer

into each terminal hole and turn the

screw with a Phillips screwdriver until

wire is secure. Do not overtighten!

2. Plug in transformer. (See Figure 5.)

WARNING: Do not link two or more timers

together using a common transformer.

3. Slide the cover back on until it snaps.

Programming

Step 1—Setting Clock Time and Day of Week

1. Turn dial to

SET DAY

CLOCK

position.

2. Press and release

RESET button using a

pen or pencil. Display briefly shows all

functions then 12:00 PM with blinking

day of week indicator.

3. Press

to advance the blinking

indicator to the current day of week.

(See Figure 6.)

4. Press

ENTER

to record current day of week.

Indicator stops blinking and time begins

blinking.

(See Figure 7.)

5. Press the + or – button to set the current

time of day. For faster setting press and

hold + or – button. Press

ENTER

to record current time of day.

Step 2—Setting Watering Cycle Start Times

Note: A cycle start time is the time of day that the timer begins watering the first sta-

tion, and all other programmed stations will then follow in sequence. There are not

separate start times for each station. If you enter more than one cycle start time, all

stations programmed to operate will water again (in sequence).

1. Turn dial to

SET START TIMES

. Display

shows Start Time 1

in the left corner and -:— blinking.

2. Press + or – button to select the first

cycle start time. For faster setting press

and hold + or – button.

3. Press

ENTER

to record first start time. (See Figure 8.)

4. Press

and repeat steps 2 and 3 if additional start times are required.

5. Press

CLEAR

to erase a start time.

6. The WaterMaster

Timer allows up to 3 start times per day. Do not set over-

lapping start times. One start time will activate each station in sequence. You

cannot set a cycle start time for each station. Generally only one cycle start

time is required.

Programming

Step 3—Setting Watering Durations for Each Station

You can assign each station an automatic watering period as short as 1 minute

and as long as 99 minutes.

1. Turn dial to

SET WATER DURATION

Display shows minutes blinking

––and station indicator

▼

Station 1.

2. Press + or – button to select

desired duration for the station.

For faster setting press and hold +

or – button.

3. Press

ENTER. Station indicator steps to Station 2. Display shows blinking ––.

(See Figure 9.)

4. Repeat steps 2 and 3 for stations 2 through 6 as applicable.

5. Press

CLEAR

to erase a station duration.

Step 4—Setting Watering Days

You decide which days of the week you want to water. You may choose to

water every day, every second day, every third day, or any combination of days

of the week.

1. Turn dial to

SET WATERING DAYS.

2. Press

to move indicator to

the day you wish to water.

3. Press

ENTER to record the day.

(See Figure 10.) The indicator will

remain solid on the days assigned

to watering. The indicator will advance to the next day automatically and

blink after you press

ENTER

. To skip to the next day press

4. Repeat steps 2 and 3 for other days as desired.

5. Press

CLEAR

to make the highlighted day a non-watering day.

1 2

3 4 5

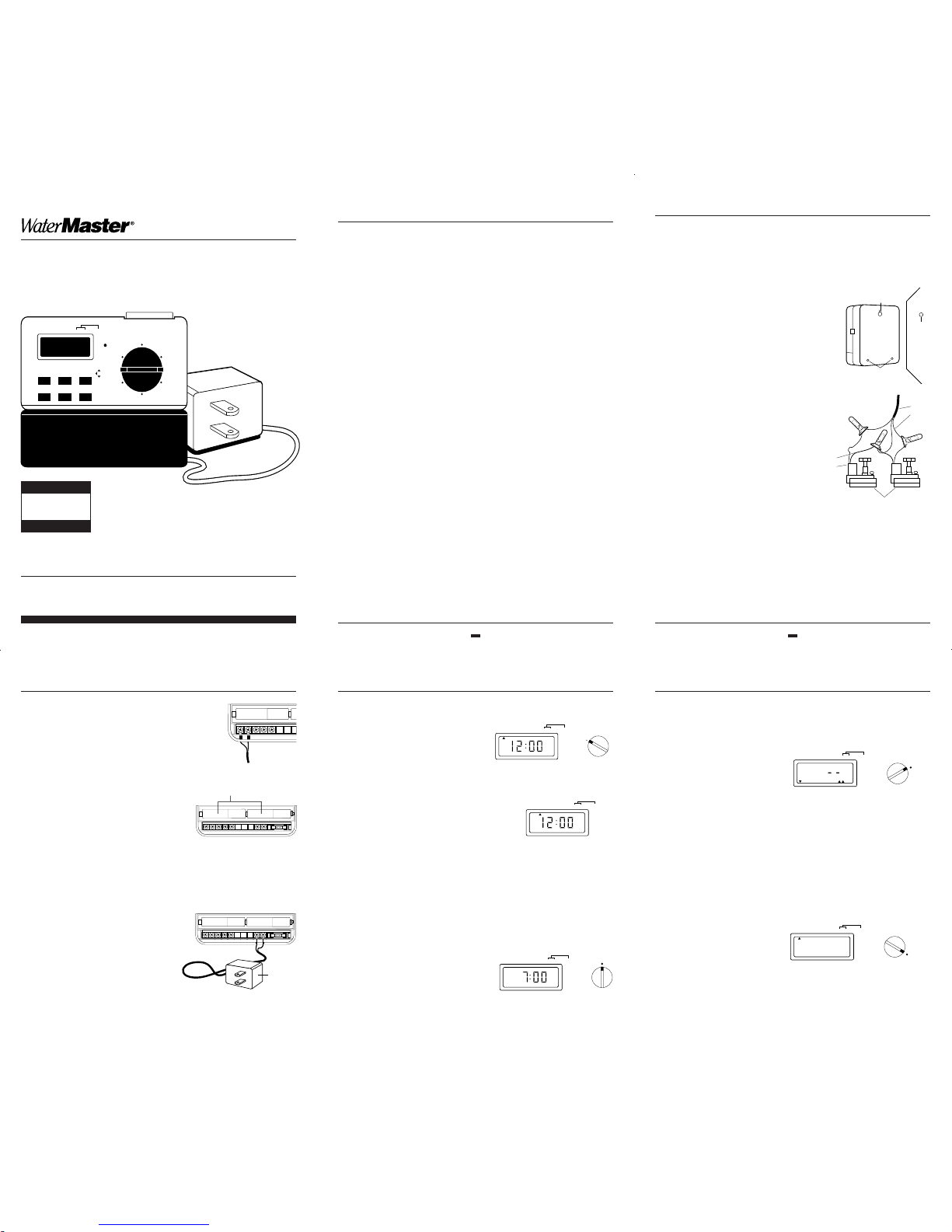

Installation and Operating Instructions

For WaterMaster

4 and 6 Zone Timers

Sprinkler Timer

EVERY3rd2ndSuSFThWTM

S

T

A

R

T



1234ZONE MAN. DURATION

RESET

SET START TIMES



SET DAY/

CLOCK



SET 

WATER 

DURATION



SET 

WATERING

DAYS

OFF

AUTO

MANUAL

+–

CLEAR NEXT

ENTER

INSTRUCTIONS

MODEL NUMBERS*

57114, 57116

57414, 57416

*WT2 VERSIONS

Wall

No. 8 Screw

Screwholes

Keyhole

Valves

Specific zone wire

Solenoids

Common Wires

Jacket

Figure 1

Figure 2

Figure 3

COM

1234

N.A. N.A. N.

To zone valve

Figure 4

COM

24V24V1234

N.A. N.A. N.A.

2 AA batteries

Figure 5

COM

24V24V1234

N.A. N.A. N.A.

Transformer

Figure 6

EVERY3rd2ndSuS

ThWTM

S

T

A

R

T



1234ZONE MAN. DURATION

1

2

3



SET DAY/

CLOCK



Figure 7

EVERY3rd2ndSuS

ThWTM

1234ZONE MAN. DURATION

Figure 8

EVERY3rd2ndSuS

ThWTM

S

T

A

R

T



1234ZONE MAN. DURATION

1



1

2

3



SET START TIMES



Figure 9

EVERY3rd2ndSuS

ThWTM

S

T

A

R

T



1234ZONE MAN. DURATION

MINS

1

2

3



SET 

WATER 

DURATION



Figure 10

EVERY3rd2ndSuS

ThWTM

1234ZONE MAN. DURATION

SET

WATERING

DAYS

http://waterheatertimer.org/Sprinkler-and-watering-timers.html

http://waterheatertimer.org/Woods-timers-and-manuals-old.html#raindrip

Downloaded from www.Manualslib.com manuals search engine
