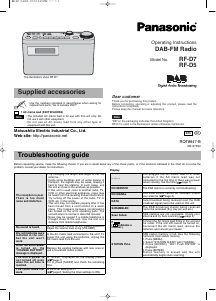

Handleiding Panasonic RF-D7 Radio

Handleiding

Supplied accessories

Operating Instructions

DAB-FM Radio

Model No. RF-D7

RF-D5

Dear customer

Thank you for purchasing this product.

Before connecting, operating or adjusting this product, please read the

instructions completely.

Please keep this manual for future reference.

“EB” on the packaging indicates the United Kingdom.

RF-D7 is used in the illustrations unless otherwise mentioned.

Note

• The included AC mains lead is for use with this unit only. Do

not use it with other equipment.

• Do not use an AC mains lead from any other type of

equipment with this unit.

Note

RQT8947-B

M0107KS0

EB

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the

problem, consult your dealer for instructions.

Display

The reception is poor.

There is too much

noise and distortion.

• Try changing the length and angle of the rod

antenna.

• Inside some buildings and on some means of

transport, the signals may be weak, making it

hard to hear the stations. In such cases, use

the unit as close to the windows as possible.

• If this unit is used close to another radio, TV,

VCR or other electrical appliance, noise may

be heard from the resulting mutual interference.

Try turning off the power of the radio, TV or

VCR, etc. in the vicinity.

• This unit may not operate properly after it has

been moved from a cold location to a warm

place. This happens because condensation

has formed on the unit’s operating parts: The

unit will return to normal in about 60 minutes.

• Noise may be caused if a mobile telephone is

brought close to the unit. Use the unit at a

distance from mobile telephones.

Use the numbers indicated in parentheses when asking for

replacement parts. “As of January 2007”

The illustrations show RF-D7.

1 AC mains lead (K2CT3CA00004)

No sound is heard.

Is the volume control at the lowest position?

Adjust the volume level using [VOLUME]

Dry cell batteries were

installed in the unit,

but the unit won’t

work.

Is the AC mains lead connected to the unit? To

power the unit using the batteries, unplug the

AC mains lead from the unit.

When the unit’s power

is turned on, the

“CHANGE BATTERY”

message is displayed.

Replace the existing batteries with new ones or

use a household mains socket.

The unit’s power is

not turned off even

when the set time is

reached.

Is “SLEEP” displayed on the display panel?

( page 7)

If it is, press [SLEEP] and check the remaining

time.

The timer does not

work.

Is the timer setting OFF?

( page 8, Setting the timer settings to ON).

– –:– –

You plugged the AC mains lead in or used

batteries if the AC mains lead was not

connected for the first time or there was a power

failure recently. Set the time.( page 7)

NO SERVICE The DAB station is currently not broadcasting.

NO SIGNAL

This DAB station cannot be received. Check

your antenna ( page 4).

DATA

Data broadcast being received over the DAB

broadcast signal cannot be used on this unit.

SCRAMBLED

The DAB broadcast station being received

cannot be accessed (E.g. pay per use etc.).

Scan Failed.

DAB stations are not receivable. Check your

antenna and try Auto scanning ( page 5).

F

( indicates a

number.)

Connect the AC mains lead firmly to the unit and

the outlet. If the unit still cannot be turned on,

disconnect the AC mains lead, remove the

batteries, and consult your dealer.

STATION FULL

DAB station memory is full. Use the following

method to clear station memory.

1. Press [MENU].

2. Select “STATION CLEAR” with [TUNING].

3. Press [ENTER]. “OK? Push ENTER” is

displayed.

4. Press [ENTER].

Station memory is erased and the unit

automatically begins Auto scanning.

Matsushita Electric Industrial Co., Ltd.

Web site: http://panasonic.net

En

RF-D7̲5-020507.2.52:49PMページ1
