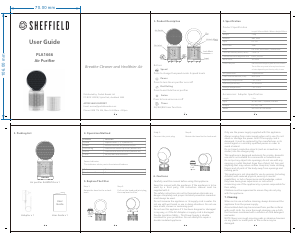

Handleiding Sheffield PLA1666 Luchtreiniger

Handleiding

Air Inlet

Air Outlet

Input

Pin

Unlock Mark

Lock Mark

Air purifier & HEPA filter x 1

Adaptor x 1

Step 4.

Connect the joint plug Rotate the head to the lock mark

Step 3.

User Guide

PLA1666

Air Purifier

2 3

5 6 74

User

Guide

Right

Left

User Guide x 1

Breathe Cleaner and Healthier Air

Distributed by: Prolink Brands Ltd

PO BOX 132398, Sylvia Park, Auckland 1644

AFTER SALES SUPPORT

Email: [email protected]

Phone: 0508 776 546, Mon-Fri 8.30am -4.30pm

1

Buttons

Oscillating

Press to oscillate the air purifier

Power

Press to turn the air purifier on or off

Speed

Press to change the speed mode. 3 speed levels

Timer

2H/4H/8H timer function

Anion

Press to turn anion on or off

Size

Length 143mm x Width 180mm x Height 360mm

Accessories：Adaptor Specification

Weight

1.2kg

Material ABS, Steel

Input

DC 12V

Max Power 24W

Filter Pre-filter, HEPA filter, Carbon filter

Clean Air Delivery Rate (CADR)

3

120 m /h

Concentration of Negative Ions

6

3

8X10 pcs/cm

Noise Level 30-50dB

Filter Lifecycle

6 Months on average in general environment.

The air filter may need to be replaced sooner

or later depending on the air quality in area

Air Speed Level 3 Speed levels

Cubic Feet Per Minute (CFM)

3

80 ft /min

Operating Temperature -10~ +45℃

Operating Humidity 20~ 80% RH

Storage Temperature -10~ +45℃

Length

1.5m

Input AC100-240V~, 50/60Hz, 0.5A Max

Output

DC 12V, 1.5A

Product Specification

Buttons

Function

Speed

3 speed levels 1, 2, 3 (default 2)

Power

Press to turn the air purifier on/off

Oscillating

Press to oscillate air purifier (default on)

Anion

Press to turn anion on or off (default on)

Timer

2H/4H/8H timer function

Power Indicator

The indicator alerts you to the status of buons.

Color

Status

Continuous Green

Connected

Step 1.

Rotate the head to the unlock

mark

Pull out the head and joint plug,

then replace the filter

Step 2.

1. Product Description 2. Specification

3. Packing List

4. Operation Method

5. Replace The Filter

6.

Cautions

Carefully read this manual before using this appliance.

Keep this manual with the appliance. If the appliance is to be

used by a third party, this instruction manual must be

supplied with it.

The safety instructions do not by themselves eliminate any

danger completely and proper accident prevention measures

must always be used.

Do not immerse the appliance or its supply cord in water. Do

not use with wet hands or use in damp situations. Do not use

near a bath, shower or swimming pool.

Do not use this appliance if it has been dropped or damaged

in any way, or if the AC Adapter or supply cord is damaged.

Double Insulation Safety - This Power Supply is double

insulated for your protection. Do not attempt to repair a

double insulated appliance.

106.00 mm

70.00 mm

Only use the power supply supplied with this appliance.

Always unplug from mains supply when not in use. Do not

abuse or damage the power cord. If the supply cord is

damaged, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to

avoid a hazard.

Do not insert conductive objects (such as screwdriver or

similar) into the charger plug.

This appliance is designed exclusively for private, domestic

use and is not suitable for commercial or industrial use.

Do not put any object into openings, do not use with any

opening or outlet blocked. Keep free of dust, lint, hair and

anything that may reduce airflow. Keep hair, loose clothing,

fingers and all parts of the body away from openings and

moving parts.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction

concerning use of the appliance by a person responsible for

their safety.

Children must be supervised to ensure they do not play

with the appliance.

7. Cleaning

When not in use or before cleaning, always disconnect the

appliance from the power supply.

Accumulated dust may be removed from purifier surfaces

with a soft cloth. For more thorough cleaning, use a cloth

that has been moistened with a solution of mild detergent

and water.

NOTE: Never use rough scouring pads or abrasive cleansers

on any plastic or metal parts as the surface may be

damaged.

Model

RSF-DY077B-1201500AU
