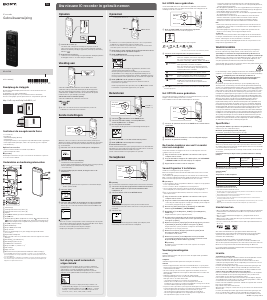

Handleiding Sony ICD-UX560 Audiorecorder

Handleiding

IC Recorder

ICD-UX560

Operating Instructions

GB

ES

© 2015 Sony Corporation Printed in China

4-573-934-12(1)

ICD-UX560 4-573-934-12(1)

Refer to the Help Guide

This is the Operating Instructions, which provides you with instructions on

the basic operations of the IC recorder.

The Help Guide is an online manual.

Refer to the Help Guide when you would like to know further details,

operations and possible solutions when a problem occurs.

http://rd1.sony.net/help/icd/u56/h_ce/

Check the supplied items

• IC Recorder (1)

• Carrying pouch (1)

• Operating Instructions (this sheet)

• Warranty card

• Application Software, Sound Organizer 2 (Installer file stored in the built-in

memory so that you can install it to your computer.)

Optional accessories

• Electret condenser microphone ECM-CS3, ECM-TL3

• USB AC adaptor AC-UD20



Note

Depending on the country or region, some of the models or optional accessories

are not available.

Parts and controls

Operation indicator

Built-in microphones (stereo) (L)

Built-in microphones (stereo) (R)

Display window

  REC/PAUSE (record/pause) button

  STOP button

Control button ( DPC (Digital Pitch Control),



A-B (repeat A-B),  (review/fast backward),  (cue/fast

forward))

  (play/enter) button*

1

BACK/HOME button

T-MARK (track mark) button

OPTION button

Strap hole (No strap is supplied with your IC recorder.)

Built-in speaker

USB connector cover (You can find the USB connector retracted behind

the cover.)

  (headphones) jack

  (microphone) jack*

1

POWER•HOLDswitch*

2

VOLUME –/+ (volume –/+) button*

1

USB slide lever

Slot cover

microSD card slot (The card slot is located under the cover.)

*

1

The  (play/enter) button, VOLUME –/+ (volume –/+) button, and  (microphone) jack

have a tactile dot. Use the tactile dot as a reference when operating the IC recorder.

*

2

 SlidingthePOWER•HOLDswitchto“POWER”andholdingitfor8secondsorlongerrestarts

your IC recorder. For detailed instructions, refer to the Help Guide.

Let’s try out your new IC recorder

Charge

 Charge the IC recorder.

Slide the USB slide lever in the direction of the arrow, and insert the

USB connector into the USB port of a running computer.

When the battery is fully charged, the battery indicator will indicate

“

.”

 Disconnect the IC recorder.

Make sure that the operation indicator does not light. Then refer to

the Help Guide to remove the IC recorder safely.

Power on

SlideandholdthePOWER•HOLDswitchinthedirectionof“POWER”

until the window display appears.

Toturnthepoweroff,slidethePOWER•HOLDswitchto“POWER”and

holdituntil“PowerOff”appearsonthedisplaywindow.

To prevent unintentional operations (HOLD)

SlidethePOWER•HOLDswitchinthedirectionof“HOLD.”

¼ ToreleasetheICrecorderfromtheHOLDstatus,slidethePOWER•HOLD

switch towards the center.

Initial settings

Select

(/)

Enter

WhenyouturnonyourICrecorderforthefirsttime,the“Configure

InitialSettings”screenappearsonthedisplaywindow.Youcanthen

select the display language, set the clock, and turn on/off the beep

sound.

 Select “Yes” to start the initial settings.

 Select the display language.

You can select from the following languages:

Deutsch (German), English*, Español (Spanish), Français (French),

Italiano (Italian), Русский (Russian), Türkçe (Turkish)

* Default setting

 Set the current year, month, day, hour, and minute.

¼ To go back to the previous clock setting item, press BACK/HOME.

 Select “Next.”

 Select “ON” or “OFF” to turn on or off the beep sound.

When the initial settings finish, the completion message and then

the HOME menu screen appears.



Notes

•If you take 30 seconds or longer before proceeding to the next step, the

display window will turn off. To turn on the display window for continuing

the initial settings, press BACK/HOME.

•You can change any of the initial settings at any time later. For detailed

instructions, refer to the Help Guide.

Record

Built-in microphones

STOP

REC/PAUSE

¼

•BeforeyoustartusingtheICrecorder,makesurethatthePOWER•HOLD

switch is at the center dot position.

•Youcanselectarecordingsceneforeachsituationbyselecting“Scene

Select”intheOPTIONmenu.

 Turn the IC recorder so that its built-in microphones point in

the direction of the recording source.

 Press REC/PAUSE.

Recording starts and the operation indicator lights in red.

During the recording, the peak meters appear to help you adjust

the recording level ().

Please adjust the orientation of the built-in microphones, the

distance from the sound source, or the sensitivity setting of the

microphones so that the recording level stays around -12 dB, which

fits within the optimum range, as illustrated above.

 Press STOP to stop recording.

“PleaseWait”appearsfirst,andthentherecordstandbyscreen

appears.

After you stopped recording, you can press  to play the file you

have just recorded.

Listen

Select

(

//



/



)

Enter

VOLUME –/+

(volume –/+)

BACK/HOME

 Select “ Recorded Files” from the HOME menu.

 Select “Latest Recording,” “Search by REC Date,” “Search by

REC Scene,” or “Folders.”

 Select your desired file.

Playback starts and the operation indicator lights in green.

 Press VOLUME -/+ to adjust the volume.

 Press STOP to stop playback.

To add a track mark

You can add a track mark at a point at which you want to divide a file

laterorlocateduringplayback.Youcanaddamaximumof98track

marks to each file.

You can also add track marks during recording.

Delete

OPTION

Select

(/)

Enter



Note

Once a file is deleted, you cannot restore it.

 Select the file you want to delete from the list of recorded files

or play back the file you want to delete.

 Select “Delete a File” from the OPTION menu.

“Delete?”appearsandtheselectedfilestartsplayingforyour

confirmation.

 Select “Yes.”

“PleaseWait”appearsandstaysuntiltheselectedfileisdeleted.

Using the HOME menu

You can use the HOME menu for a variety of operations, including locating

and playing a recorded file and changing the settings of your IC recorder.

BACK/HOME

Select

(



/



)

Enter

 Press and hold BACK/HOME.

The HOME menu screen appears.

The HOME menu items are aligned in the following sequence.

Recorded

Files

Record Settings Return to

XX*

Music

*Thefunctionyouarecurrentlyusingisdisplayedin“XX.”

 Select your desired function from the following:

Music

You can select and play one of the files you have

imported from a computer.

Tolocateamusicfile,select“AllSongs,”“Albums,”

“Artists,”or“Folders.”

Recorded Files

You can select and play one of the files you have

recorded with your IC recorder.

Tolocatearecordedfile,select“LatestRecording,”

“SearchbyRECDate,”“SearchbyRECScene,”or

“Folders.”

Record

You can display the record standby screen, and then

start recording.

Settings

You can display the Settings menu screen and

change various settings on the IC recorder.

Return to XX*

You can go back to the screen that was displayed

before the HOME menu screen.

* The function you are currently using is displayed

in“XX.”

¼ Press STOP to return to the screen displayed before you entered the HOME

menu.

Using the OPTION menu

You can use the OPTION menu to perform a variety of functions, including

changing the settings of your IC recorder.

The available items differ depending on the situation.

OPTION

Select

(/)

Enter

 Select your desired function from the HOME menu, and then press

OPTION.

 Select the menu item for which you want to change the setting.

 Select your desired setting option.

Copying files from your IC recorder to a

computer

You can copy the files and folders from your IC recorder to a computer to

store them.

 Follow the instructions in “Charge” to connect your IC recorder to

a computer.

 Drag and drop the files or folders you want to copy from “IC

RECORDER” or “MEMORY CARD” to the local disk on the computer.

 Disconnect your IC recorder from the computer.

Installing Sound Organizer 2

Install Sound Organizer on your computer.

Sound Organizer allows you to exchange files between your IC recorder and

your computer.

Songs imported from music CDs and other media, MP3 and other audio

files imported to a computer can also be played and transferred to the IC

recorder.



Notes

•SoundOrganizeriscompatiblewithWindowscomputersonly.Itisnot

compatible with Mac.

•This IC recorder is compatible with Sound Organizer 2 only.

•If you format the built-in memory, all data stored there will be deleted. (The

Sound Organizer software will also be deleted.)

¼ When installing Sound Organizer, log in to an account with administrator

privileges.

 Follow the instructions in “Charge” to connect your IC recorder to

a computer.

 Make sure the IC recorder is successfully detected by the

computer.

“Connecting”appearsandstaysontheICrecorder'sdisplaywindow

while the IC recorder is connected to the computer.

 Go to the [Start] menu, click [Computer], and then double-click [IC

RECORDER] - [FOR WINDOWS].

 Double-click [SoundOrganizer_V2001] (or [SoundOrganizer_V2001.

exe]).

Followthecomputer'son-screeninstructions.

 Make sure that you accept the terms of the license agreement,

select [I accept the terms in the license agreement], and then click

[Next].

 When the [Setup Type] window appears, select [Standard] or

[Custom], and then click [Next].

Follow the instructions on the screen and set the installation settings

when you select [Custom].

 When the [Ready to Install the Program] window appears, click

[Install].

The installation starts.

 When the [Sound Organizer has been installed successfully.]

window appears, check [Launch Sound Organizer Now], and then

click [Finish].



Note

You may need to restart your computer after installing Sound Organizer.

Precautions

On power

Operate the unit only on 3.7 V DC with the built-in rechargeable lithium-ion

battery.

On safety

Do not operate the unit while driving, cycling or operating any motorized

vehicle.

On handling

• Do not leave the unit in a location near heat sources, or in a place subject

to direct sunlight, excessive dust or mechanical shock.

• Should any solid object or liquid fall into the unit, have the unit checked by

qualified personnel before operating it any further.

• When using your IC recorder, remember to follow the precautions below

in order to avoid warping the cabinet or causing the IC recorder to

malfunction.

– Do not sit down with the IC recorder in your back pocket.

– Do not put your IC recorder into a bag with the headphones/earphones

cord wrapped around it and subject the bag to strong impact.

• Be careful not to allow water to splash on the unit. The unit is not

waterproof. In particular, be careful in the following situations.

– When you have the unit in your pocket and go to the bathroom, etc.

When you bend down, the unit may drop into the water and may get

wet.

– When you use the unit in an environment where the unit is exposed to

rain, snow, or humidity.

– In circumstances where you get sweaty. If you touch the unit with wet

hands or if you put the unit in the pocket of sweaty clothes, the unit may

get wet.

• Listening with this unit at high volume may affect your hearing. For traffic

safety, do not use this unit while driving or cycling.

• You may feel pain in your ears if you use the headphones when the

ambient air is very dry.

This is not because of a malfunction of the headphones, but because of

static electricity accumulated in your body. You can reduce static electricity

by wearing non-synthetic clothes that prevent the emergence of static

electricity.

On noise

• Noise may be heard when the unit is placed near an AC power source, a

fluorescent lamp or a mobile phone during recording or playback.

• Noise may be recorded when an object, such as your finger, etc., rubs or

scratches the unit during recording.

On maintenance

To clean the exterior, use a soft cloth slightly moistened in water. Then use a

soft dry cloth to wipe the exterior. Do not use alcohol, benzine or thinner.

If you have any questions or problems concerning your unit, please consult

your nearest Sony dealer.

WARNING

Do not expose the batteries (battery pack or batteries installed) to excessive

heat such as sunshine, fire or the like for a long time.

Notice for the customers: the following information is only applicable to

equipment sold in the countries applying EU directives

Manufacturer:SonyCorporation,1-7-1KonanMinato-kuTokyo,108-0075

Japan

For EU product compliance: Sony Belgium, bijkantoor van Sony Europe

Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium

To prevent possible hearing damage, do not listen at high volume levels for

long periods.

The validity of the CE marking is restricted to only those countries where it is

legally enforced, mainly in the countries EEA (European Economic Area).

Disposal of waste batteries and electrical and electronic

equipment (applicable in the European Union and other

European countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that

the product and the battery shall not be treated as household waste. On

certain batteries this symbol might be used in combination with a chemical

symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the

battery contains more than 0.0005% mercury or 0.004% lead. By ensuring

these products and batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health

which could otherwise be caused by inappropriate waste handling. The

recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons

require a permanent connection with an incorporated battery, this battery

should be replaced by qualified service staff only. To ensure that the battery

and the electrical and electronic equipment will be treated properly, hand

over these products at end-of-life to the applicable collection point for

the recycling of electrical and electronic equipment. For all other batteries,

please view the section on how to remove the battery from the product

safely. Hand the battery over to the applicable collection point for the

recycling of waste batteries. For more detailed information about recycling

of this product or battery, please contact your local Civic Office, your

household waste disposal service or the shop where you purchased the

product or battery.

Specifications

Capacity (User available capacity*

1

*

2

)

4GB(approx.3.20GB=3,435,973,837Byte)

Maximum recording time (Built-in memory)

The maximum recording time of all the folders is as follows.

LPCM 44.1 kHz/16 bit 5 hours 20 minutes

MP3 192 kbps*

3

39 hours 45 minutes

MP3128kbps 59 hours 35 minutes

MP348kbps(MONO) 159 hours



Note

When you are going to record continuously for a long time, you may need a USB

AC adaptor (not supplied). For details on the battery life, see Battery Life.

The maximum recording time in this topic is for your reference only.

Battery Life (a built-in rechargeable lithium-ion battery) (JEITA)*

4

*

5

Recording

Playback with the

built-in speaker*

6

Playback with the

headphones

LPCM 44.1 kHz/16 bit Approx. 23 hours Approx. 5 hours Approx. 30 hours

MP3 192 kbps Approx. 27 hours Approx. 5 hours Approx. 45 hours

Dimensions (w/h/d) (not incl. projecting parts and controls) (JEITA)*

4

Approx. 36.6 mm × 101.5 mm × 10.5 mm

Mass (JEITA)*

4

Approx. 52 g

Temperature/Humidity

Operating temperature 5°C - 35°C

Operating humidity 25% - 75%

Storage temperature -10°C - +45°C

Storage humidity 25% - 75%

Compatible memory cards

•microSDHC cards from 4 GB to 32 GB

•microSDXC cards of 64 GB or more

*

1

A small amount of the internal memory is used for file management and therefore not

available for user storage.

*

2

When the built-in memory is formatted with the IC recorder.

*

3

Default settings for the recording scenes.

*

4

Measured value by the standard of JEITA (Japan Electronics and Information Technology

Industries Association)

*

5

The battery life may shorten depending on how you operate the IC recorder.

*

6

When playing back music with the built-in speaker with the volume level set to 27.

Trademarks

• Microsoft, Windows, Windows Vista and Windows Media are registered

trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

• Mac OS is a trademark of Apple Inc., registered in the USA and other

countries.

• MPEG Layer-3 audio coding technology and patents licensed from

Fraunhofer IIS and Thomson.

• microSD, microSDHC and microSDXC logos are trademarks of SD-3C, LLC.

All other trademarks and registered trademarks are trademarks or registered

trademarksoftheirrespectiveholders.Furthermore,“™”and“®”arenot

mentioned in each in this manual.

This product is protected by certain intellectual property rights of Microsoft

Corporation. Use or distribution of such technology outside of this product

is prohibited without a license from Microsoft or an authorized Microsoft

subsidiary.

The“SoundOrganizer2”usessoftwaremodulesasshownbelow:

Windows Media Format Runtime

License

Notes on the License

This IC recorder comes with software that are used based on licensing

agreements with the owners of that software.

Based on requests by the owners of copyright of these software

applications, we have an obligation to inform you of the following. Please

read the following sections.

Licenses (in English) are recorded in the internal memory of your IC recorder.

Establish a Mass Storage connection between the IC recorder and a

computertoreadlicensesinthe“LICENSE”folder.

On GNU GPL/LGPL applied software

The software that is eligible for the following GNU General Public License

(hereinafterreferredtoas“GPL”)orGNULesserGeneralPublicLicense

(hereinafterreferredtoas“LGPL”)areincludedintheICrecorder.

This informs you that you have a right to have access to, modify, and

redistribute source code for these software programs under the conditions

of the supplied GPL/LGPL.

Source code is provided on the web. Use the following URL to download it.

http://www.sony.net/Products/Linux/

We would prefer you do not contact us about the contents of source code.

Licenses (in English) are recorded in the internal memory of your IC recorder.

Establish a Mass Storage connection between the IC recorder and a

computertoreadlicensesinthe“LICENSE”folder.

The display window turns off

automatically

The“ScreenOffTimer”settingonyourICrecorderissetto“30sec”

by default to save battery power. If you leave the IC recorder

untouched for 30 seconds, the display window will turn off, but

you can still perform any button operations. To turn the display

window back on, press BACK/HOME.

¼ You can keep the display window from turning off or change the

default setting to another timer interval. Press and hold BACK/

HOMEandselect“

Settings”-“CommonSettings”-“ScreenOff

Timer,”andthenselect“NoAutoScreenOff,”“15sec,”“30sec,”

“1min,”“3min,”or“5min.”

Beoordeling

Meer over deze handleiding

We begrijpen dat het prettig is om een papieren handleiding te hebben voor je Sony ICD-UX560 Audiorecorder. Je kunt de handleiding bij ons altijd downloaden en daarna zelf printen. Indien je graag een originele handleiding wilt hebben, raden we je aan contact op te nemen met Sony. Zij kunnen wellicht nog voorzien in een originele handleiding. Zoek je de handleiding van Sony ICD-UX560 Audiorecorder in een andere taal? Kies op de homepage je taal naar keuze en zoek daarna op het modelnummer om te zien of we deze beschikbaar hebben.

Specificaties

Alle handleidingen voor Sony Audiorecorders
Meer handleidingen voor Audiorecorders

Gerelateerde producten

Handleiding

Sony ICD-PX312F Audiorecorder

Handleiding

Sony PCM-D50 Audiorecorder

Handleiding

Sony ICD-ST25 Audiorecorder

Handleiding

Sony ICD-P320 Audiorecorder

Handleiding

Sony ICD-SX56 Audiorecorder

Handleiding

Sony ICD-U60 Audiorecorder

Handleiding

Sony ICD-SX68DR9 Audiorecorder

Handleiding

Sony ICD-37 Audiorecorder

Gerelateerde categorieën
