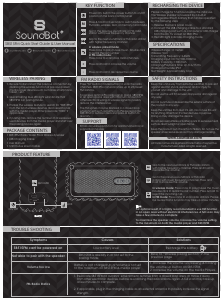

Handleiding SoundBot SB515FM Luidspreker

Handleiding

Go to the previous soundtrack or FM radio

station with lower frequency channel

Skip to the next soundtrack or FM radio station

with higher frequency channel

In wireless paired mode:

Press once to play/pause music. Double click

to redial the last number

In FM radio mode:

Press once to scan/store radio channels.

Power On: Switch the power button to on/off

position on the back control panel

WIRELESS PAIRING

• SB515FM Radio Water Proof Wireless Speaker

• USB Charging Cable

• User Manual

• 3.5mm Aux Line-In Cable

Keep the unit away from extreme weather to prevent

against electric shock, explosion and/or injury to

yourself and damage to the unit.

Do not use the unit if it as been dropped or damaged in

any way.

Do not puncture or disassemble the exterior surface of

the product in any way.

Keep the unit free from dust, lint, etc. Do not use this unit

for anything other than it’s intended use or purpose.

Doing so may damage the device.

Keep the product out of reach of children. Do not use the

speaker at excessive levels as it may damage hearing.

Do not expose batteries or battery pack to excessive heat,

such as direct sunlight or open flame.

SB515FM Quick Start Guide & User Manual

1. Release the back panel cover.

2. Connect the USB charging cable to a standard

USB charging port such as computer or USB charger

from the DC 5V socket on SB515FM.

3. Red LED light indicates charging mode.

Please charge for 5 full hours before the initial use.

The Wireless speaker is powered by a built-in

rechargeable lithium battery that can be operated

by the following steps

1. Be sure to disconnect the previous connection by

disabling the wireless function of previous paired

media player devices such as mobile smartphone,

tablet, ..etc.

2. Quick flashing blue LED light will indicate that

SB515FM is in pairing mode.

3. Enable the wireless feature to search for “SB515FM”

from the list of wireless devices discovered to pair

with the media player. Enter passcode “0000” if

applicable.

4. If pairing fails, remove the number of all excessive

used devices from the media player and start over

the pairing process again.

Press “M” button (mode button) to scan the radio

channels. SB515FM can scan/store up to 25 preset

FM stations.

To receive optimal FM radio signal, place SB515FM

in an open space area with minimum amount of

other electrical wiring or wireless signal to possibly

reduce the interferences.

The FM sginals may be blocked in a closed loop

environment such as bathroom. Please re-locate

SB515FM to outdoor area and press M button to

re-scan.

Wireless Range: 10 meters

Wireless: V4.0

Transmitting Frequency: 2.4GHz

Charging Input: DC 5V/100-1000mA

Battery Capacity: 1500 mAh

Charging/Playback Time: Up to 6/15 Hrs

Waterproof Grade: IPX7

Net Weight: Approximately 12 oz

All trade names are registered trademarks of respective

manufacturers listed. All rights reserved.

Symptoms Causes

Solutions

SB515FM cant be powered on

Not able to pair with the speaker

Volume too low

Low battery level

SB515FM is already in or not set to the

pairing mode

Battery is not charged Up or Volume is not set

to the maximum on SB515FM & media player

Recharge the battery

Refer to “Wireless pairing section” in the

previous page

1. Increase the volume via pressing & holding

the volume up button on SB515FM

2. Increase the volume on the Media Players.

FM Radio Statics

1. Re-locate SB515FM to outdoor environment, remove from a closed loop area, or move it away

from other electronic devices, before re-scanning the radio stations again. A full scan may take up

a few minutes to complete.

2. If applicable, plug in the charging cable as an external antenna to possibly increase the signal

strength.

Press & hold for 3 seconds to switch between

FM radio, wireless, AUX, or memory card mode

Press and hold to increase the volume

Press and hold to decrease the volume

Email [email protected] for additional technical

supports or inquiries

www.SoundBot.com

M

+

-

To maximize the speaker volume, increase the volume setting

to the maximum on both the media player and SB515FM

For optimal result, it is highly recommended to use FM function

in an open area without electrical interferences. A full scan may

take a few minutes to complete

Skip to the next soundtrack or FM radio station

with higher frequency channel. Press and hold to

decrease the volume.

In wireless mode: Press once to play/pause the music.

Double click to redial the last number. Press & hold to

reject the incoming call.

In FM mode: Press once to scan radio stations. Please

be aware that a full scan may take up a few minutes.

Tips:

+

Go to the previous soundtrack or FM radio

station with lower frequency channel. Press and

hold to increase the volume.

-

+

M

M

DC 5V AUX

OFF ON

BACK

-

AUX

MicroUSB

On/ Off

PACKAGE CONTENTS

FM RADIO SIGNALS

SUPPORT

SAFETY INSTRUCTIONS

KEY FUNCTION

RECHARGING THE DEVICE

SPECIFICATIONS

PRODUCT FEATURE

TROUBLE SHOOTING
