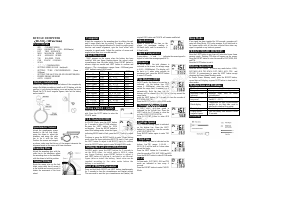

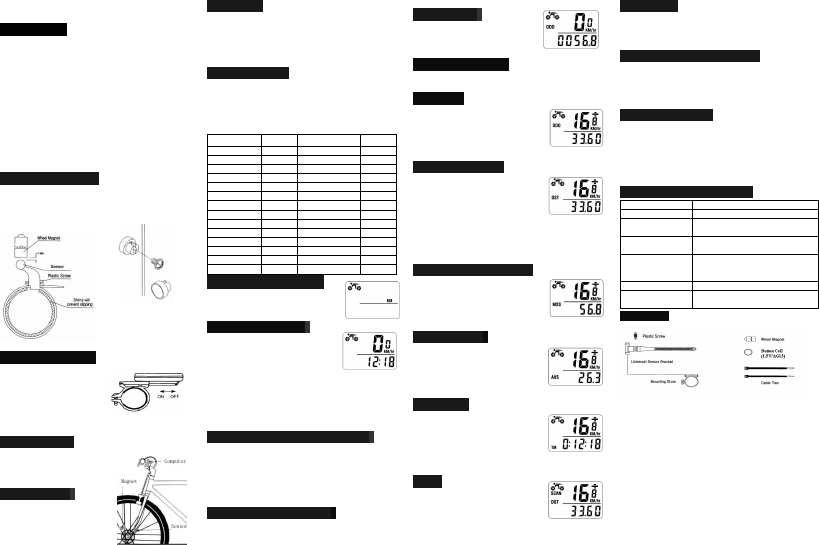

Handleiding Sunding SD-531 Fietscomputer

Handleiding

BCYCLE COMPUTER

（SD-531）(14Functions)

FUNCTIONS

- SPD CURRENT SPEED

- ODO ODOMETER （0.001～99999km/m)

- DST TRIP DISTANCE

- MXS MAXIMUM SPEED

- AVS AVERAGE SPEED

- TM ELAPSED TIME

- CLK CLOCK （12H/24H）

- SCAN

- “+” “－” COMPARATOR

- SETTING SPEED SCALE（km/h,m/h）

- SETTING TYRE CIRCUMFERENCE : (0mm ～

9999mm)

- SETTING THE LAST VALUE OF ODOMETER/ODO

- FREEZE FRAME MEMORY

- AUTO ON/OFF

Battery Installation

Remove the battery cover from the bottom of the computer by

using a flat blade screwdriver, install an AG13 battery with the

positive (+) pole facing the battery cover and replace the cover.

Should the LCD show irregular figures, take out the battery

and re-install it.

Speedometer Sensor

Attach the speedometer sensor

bracket to the left fork blade,

using the shims to adjust the

diameter, and using the cable

ties to tie it with the fork.

Position the sensor and magnet

as shows; make sure that the arc of the magnet intersects the

alignment mark on the sensor with 1mm clearance.

Mounting Shoe

Attach the mounting shoe with the

cable ties to the handlebar; adjust

the mounting shoe on the handlebar

with the shims to hold its position.

Sensor Wiring

Route the sensor wire up the fork

blade, using cable ties to secure it

at the bottom and crown to avoid it

hinder the movement of the front

wheel.

Computer

Attach the computer to the mounting shoe by sliding the unit

until it snaps firmly into its position. To remove it, press the

button on it in the opposite direction.To check for proper speed

function and sensor alignment, spin the front wheel with

computer in speed mode. Adjust the position of sensor and

magnet when there is no or weak reaction.

Wheel Size Input

‘2060’ appears on the screen when the battery has been

installed, with one figure flashing,choose the correct wheel

circumference from the table below. Press RIGHT button to

advance digits as needed and LEFT button to confirm and

advance. (The circumference ranges 0mm～9999mm),press

LEFT button to enter KM/M mode.

TIRE SIZE

CIRC

TIRE

SIZE

CIRC

700c x 38mm

2180 26” x 2.25” 2115

700c x 35mm

2168 26” x 2.1” 2095

700c x 32mm

2155 26” x 2.0” 2074

700c x 30mm

2145 26” x 1.9”/1.95” 2055

700c x 28mm

2136 26” x 1.75” 2035

700c x 25mm

2124 26” x 1.5” 1985

700c x 23mm

2105 26” x 1.25” 1953

700c x 20mm

2074 26” x 1.0” 1913

700c Tubulari

2130 24” x 1.9”/1.95” 1916

650c x 23mm

1990 20” x 1-1/4” 1618

650c x 20mm

1945 16” x 2.0” 1253

27” x 1-1/4”

2161 16” x 1.95” 1257

27” x 1-1/8”

2155 16” x 1.5” 1206

26” x 2.3” 2135

Setting（km/h）/（m/h）

Press the RIGHT button to choose km/h or

m/h. Press the LEFT button to enter the

CLOCK mode.

CLK Mode(12H/24H)

In CLOCK Mode, press the LEFT button

for 3 seconds to enter 12/24H selection.

Re-press the LEFT button for 12/24

exchanging. Press the RIGHT button to

enter Hour setting mode, when the figure

indicating HOUR start to flash, press the LEFT button to adjust

it.

Continue to press the RIGHT button to enter Minute setting

mode, when the figure indicating MINUTE start to flash, press

the LEFT button to adjust it and RIGHT button to confirm,

press the RIGHT button again to enter Mileage(ODO) mode.

Setting the Last value of Odometer

In ODO mode, press the LEFT button for 2 seconds to

set the ODO value, its initial value is 0000.0. when

one figure flashing, press RIGHT button to adjust it

and LEFT button to confirm it, and start to set the next

figure.(after re-install the battery, latest value can be

inputted according to the value exists before the

battery is re-installed).

Reset of Mileage Parameter

Press and hold both RIGHT and LEFT button simultaneously

for 3 seconds to clear the circumference and (km/m) setting.

The user need to reset the tyre circumference and (km/m), the

original ODO value and CLOCK will remain unaffected.

Speedometer

Speed is shown all the time on the

screen, its maximum reading is

99.9km/h (m/h), and it’s accurate to +/-

0.1km/h (m/h).

Speed Comparator

During riding , ‘+’and ‘－’ indicates the current speed is

higher or lower than average speed(AVS) .

Odometer

In ODO mode , the total distance is

indicated on the screen, its mileage range

is 0.001～99999km(m). The display will

be back to 0 when value exceeds its

maximum limit, press the RIGHT button

to enter DST mode.

Trip Distance (DST)

In DST mode, the distance for one trip is

indicated on the bottom line. DST

ranges 0～9999km(m), when the value

exceed the range limit, it restarts from 0

automatically. Both the time and the

distance will be cleared when the time of one trip exceed the

range limits.

press the LEFT button for 5 seconds to clear the records of

DST,MXS,AVS,TM.

Press the RIGHT button to enter MXS mode.

Maximum Speed (MXS)

In MXS mode, maximum speed is

indicated on the bottom line. Press the

LEFT button for 5 seconds to clear the

records of MXS (DST,AVS,TM).

Press the RIGHT button to enter AVS

mode.

Average Speed

In AVS mode, average speed is indicated

on the bottom line. Press the LEFT

button for 5 seconds to clear the records

of AVS,DST,MXS,TM.

Press RIGHT button again to enter TM

mode.

Trip Time

In TM mode, trip time is indicated on the

bottom line.TM ranges 0 :00 :00 ～

99:59 :59. It will be back to 0 when value

exceed the limits.

Press the LEFT button for 5 seconds to

clear the records of TM, DST, MXS and AVS.

Press the RIGHT button to enter SCAN mode.

SCAN

In Scan mode , DST, MXS, AVS and TM

mode are indicated in turn every 4

seconds.

Press the RIGHT button to enter CLOCK

Mode.

Sleep Mode

If no signal has been inputted for 300 seconds, computer will

enter into Sleep Mode, CLK value remains. It will turn back to

the former mode with all the data collected then when any

signal is inputted or any button is pressed.

FREEZE FRAME MEMORY

Press the LEFT button in any time will enter into freeze frame

memory mode. Flashing TM data will appear on the screen.

Press the RIGHT button to view the records of DST,MXS,AVS

and TM.

Press the LEFT button to end it.

Buttons Instruction

Press the RIGHT button to choose any mode below : ODO,

DST, MXS, AVS, TM, SCAN（DST、MXS、AVS、TM） and

CLOCK. It’s unnecessary to press the LEFT button except

choosing the Freeze frame Memory mode.

In Freeze Frame Momery mode, press the RIGHT button,

several data will display, re-press LEFT button to turn back to

other modes.

Malfunctions and Problems

Malfunction

s

P

roblem

s

No speedometer Improper magnet/sensor alignment

Inaccurate value is

indicated

Improper input, such as wheel

circumference.

Slow display

response

Temperature exceeds operating

limits(0℃～55℃).

Black display

Temperature too high, or put in direct

sunlight for too long time, need to

take back to shadow for a period.

Weak display Poor battery contact or dead battery

Display shows

irregular figures

Take out battery and reinstall it after

10 seconds.

Accessories
