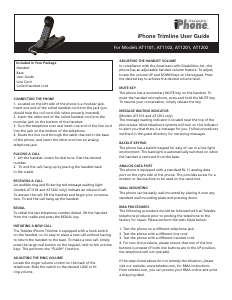

iPhone Trimline User Guide
For Models AT1101, AT1102, AT1201, AT1202
CONNECTING THE PHONE
1. Located on the left side of the phone is a modular jack.
Insert one end of the coiled handset cord into this jack (you
should hear the coil cord click when properly inserted).
2. Insert the other end of the coiled handset cord into the
modular jack on the bottom of the handset.
3. Turn the telephone over and insert one end of the line cord
into the jack on the bottom of the telephone.
4. Route the line cord through the cable channel in the base
of the phone, and insert the other end into an analog
telephone jack.
PLACING A CALL
1. Lift the handset. Listen for dial tone. Dial the desired
number.
2. To end the call, hang up by placing the handset back
in the cradle.
RECEIVING A CALL
An audible ring and flickering red message waiting light
(models AT1102 and AT1202 only) indicate an inbound call.
To answer the call, lift the handset and begin your conversa-
tion. To end the call hang up the handset.
REDIAL
To redial the last telephone number dialed, lift the handset
from the cradle and press the REDIAL key.
INITIATING A NEW CALL
The Teledex iPhone Trimline is equipped with a hook switch
on the handset, so it’s easy to place a new call without having
to return the handset to the base. To make a new call, simply
press the large oval button on the keypad, next to teh volume
keys. This performs the “FLASH” function.
ADJUSTING THE RING VOLUME
Locate the ringer volume control on the back of the
telephone. Slide the switch to the desired LOW or HI
ring volume.
ADJUSTING THE HANDSET VOLUME
In compliance with the Americans with Disabilities Act, this
phone has an adjustable handset volume feature. To adjust,
locate the volume UP and DOWN keys on the keypad. Press
the desired key to achieve the desired volume level.
MUTE KEY
The phone has a momentary MUTE key on the handset. To
mute the handset microphone, press and hold the MUTE key.
To resume your conversation, simply release the key.
MESSAGE WAITING INDICATOR
(Models AT1101 and AT1201 only)
The message waiting indicator is located near the top of the
phone base. Most telephone systems will turn on this indicator
to alert you that there is a message for you. Follow procedures
outlined in the guest directory for retrieving messages.
BACKLIT KEYPAD
The phone has a backlit keypad for easy of use in a low-light
environment. The backlight is automatically switched on when
the handset is removed from the base.
ANALOG DATA PORT
The phone is equipped with a standard RJ-11 analog data
port on the right side of the phone. This provides access for a
modem or fax machine to be used on the same line.
WALL MOUNTING
The phone can be easily wall-mounted by placing it over any
standard wall mounting plate and pressing down.
RMA PROCEDURES
The following procedure should be followed with all Teledex
telephone products prior to sending the telephone to the
factory for repair. Please perform the tests listed below:
1. Test the phone on a different telephone jack.
2. Test the phone with a different line cord.
3. Test the phone with a different handset cord.
4. For two-line products, please ensure that one of the line
buttons is pressed (if both line buttons are in the UP position,
the telephone will not operate).
If the steps listed above do not remedy the situation, please
visit our website, www.teledex.com, for RMA instructions.
From teledex.com, you can process your RMA online and print
a shipping label.
Handset
Base
User Guide
Line Cord
Coiled handset cord
Included in Your Package
