Ver. 20181204

Motion Sensor Ceiling Light

Art.no 36-6078

Please read theentire instruction manual before using theproduct and then save it for future

reference. Wereserve theright for any errors in text or images and any necessary changes

made to technicaldata. Intheevent of technical problems or other queries, please contact

our Customer Services.

Safety

• Installation should only be carried out by aqualified electrician.

• Theproduct is only intended for indooruse.

• Theproduct must be installed in accordance with current safety regulations to prevent

life-threatening accidents.

• Theproduct is intended for fixed installation.

• Theproduct is intended for ceiling installation.

Installation

Fixings

If thesupplied fixings are not suitable for thematerial which your ceiling is made of,

use appropriate fixings which will guarantee afirm anchorage.

Activation range

• Therange is controlled by DIP switches 1, 2 and 3

• 10–100 % of 6m

Duration of activation after motion detection

• Theactivation time is controlled by DIP switches 4, 5 and 6

• 5 sec – 30min

Light sensor sensitivity

• Thesensitivity is controlled by DIP switches 7, 8 and 9

• 2–50 lux oroff

Note: Thelux values are measured with thediffuser removed.

Whenthediffuser is fitted, thelux values are somewhatlower.

The luminous flux (brightness) of the ceiling light can be adjusted by setting

the DIP switches as shown in the table.

Luminous flux (lm) Power (W) 1 2

1100 15.5 − −

800 11.5 ON −

500 7.6 ON ON

Care and maintenance

Switch off thepower to theceiling light before cleaning. Clean thelight by wiping it with asoft,

dampcloth. Useamild detergent. Neveruse solvents or strong, abrasive cleaning agents.

Responsible disposal

This symbol indicates that this product should not be disposed of with general

household waste. This applies throughout theentire EU. In order to prevent

any harm to theenvironment or health hazards caused by incorrect waste

disposal, theproduct must be handed in for recycling so that thematerial can

be disposed of in aresponsible manner. When recycling your product, take it to

your local collection facility or contact theplace of purchase. They will ensure

that theproduct is disposed of in anenvironmentally sound manner.

Specifications

Only intended for indoor use (IP44).

If theplastic diffuser is damaged it must be replaced.

Minimum distance from combustible material: 0.1m.

Warning: Makesure that thepower is shut off before

starting theinstallation.

Thelight source in this product must only be replaced by

themanufacturer, aqualified service facility or aqualified

technician.

Note: Ifyou need to drill into theceiling, make sure to avoid any concealed electrical wiring.

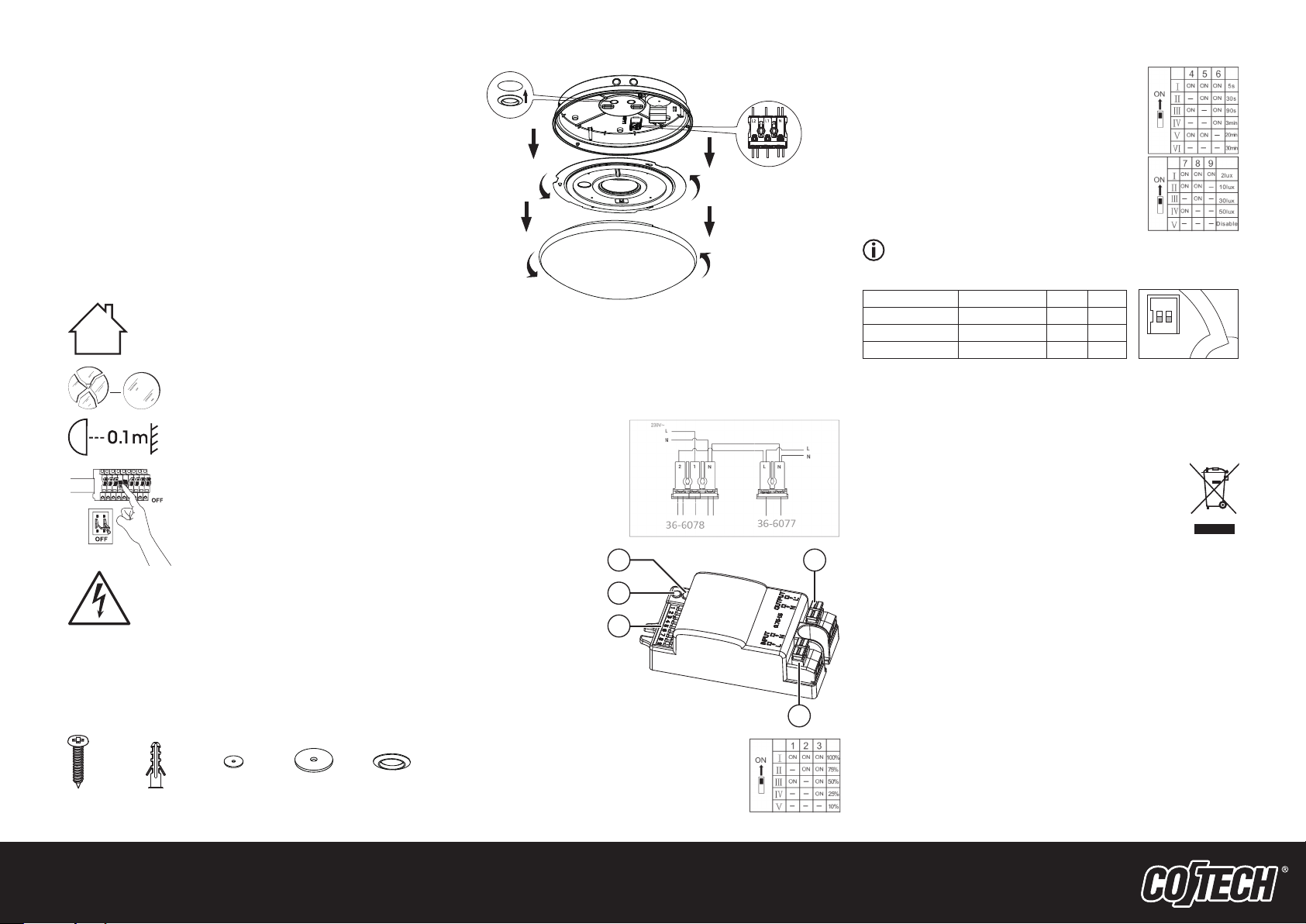

1. Open theceiling light by twisting thediffuser anticlockwise and removingit.

2. Remove theplate holding theLED light by undoing the3retaining screws.

3. Knock out one of thepre-cut cable entries and fit thecablegland.

4. Pull thepower supply cable through thecablegland.

5. Fasten theceiling light directly to theceiling using the4outermost mounting holes or

fasten it to aceiling rose using the2 innermost mountingholes.

6. Connect thepower supply cable to theterminal block as shownbelow.

7. Re-assemble theceiling light in reverseorder.

Sensor

1. Light sensor

2. LED which comes on when

thesensor is activated

3. Controls for setting

theactivation range,

duration of activation and

light sensor sensitivity.

4. Out

5. In

Light fitting

Power supply 220–240 VAC,

50/60 Hz

Light source Built in LED

Power 15.5W

IP rating IP44

Colour temperature 3000K

Colour rendition Ra 80

Luminous flux 1100lm

800 lm

500 lm

Operating temperature −30°C ~ +40°C

Diam 34cm

Sensor

Recommended

installation height 2.5–6m

Detection range 12m

Sensitivity 10, 25, 50,

75 or 100 %

Lighting time 5 sec, 30 sec,

90 sec, 3min,

20min or 30min

Light sensor 2, 10, 25,

50 lux oroff

Motion sensor 0.5–3m/s

Detection angle 360º

Relay output for connecting up to 14additional

ceiling lights (36-6077), which are all activated

simultaneously.

Maxload: 800W resistive, 400W inductive

This ceiling light (36-6078) can be

interconnected with and control

multiple ceiling lights of article number

36-6077.

ON

1 2
