ACCO Brands
300 Tower Parkway
Lincolnshire, IL
60069-3640
1 800 820 6220
Made to Swingline
Standards in China
©2007 ACCO Brands
swingline.com

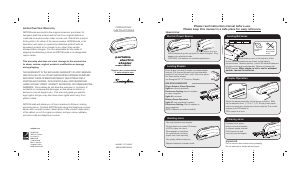

OPERATING
INSTRUCTIONS
portable
electric
stapler
model 48200
Register your product online
@ www.swingline.com
48200E•11572•0307
SMP48200658R03K
Limited Two-Year Warranty
ACCO Brands warrants to the original consumer purchaser
for
two-years that this product will be free from original defects in
materials or workmanship under normal use. Should this product
fail to perform for either of the above reasons, ACCO Brands,
in its
discretion, will repair or replace the defective product with an
equivalent product at no charge to you, other than certain
transportation charges.You are responsible for the costs of
shipping
the defective product to ACCO Brands or its designated
repair center.
This warranty also does not cover damage to the product due
to abuse, misuse, neglect, accident, modification or damage
during shipping.
THIS WARRANTY IS THE EXCLUSIVE WARRANTY OF ACCOBRANDS,
AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED,
INCLUDING THOSE OF MERCHANTABILITY AND FITNESS
FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ACCOBRANDS
BE
LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion
or limitation of
incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from
state to state.
ACCO Brands will advise you of the procedure to follow in making
warranty claims. Contact ACCO Brands using the telephone number
below, with a model number/description of the product, description
of the defect, proof of original purchase, and your name, address,
and area code and telephone number.
Please read instruction manual before use.
Please keep this manual in a safe place for easy reference.
How to Use:
Avoiding Jams
Use only standard size staples.
Use quality alkaline batteries.
Replace batteries if stapler stalls.
Important
Do not remove documents during stapling.
Do not attempt to staple without paper.
Loading Batteries
Slide the battery cover in the direction of the
arrow. Insert the batteries as shown on the battery
compartment. Observe polarity. Load 6 AA alkaline batteries
(do not mix old and new batteries). Maximum battery life
8,000 staples.
When stapler is not in use for extended
periods, remove the batteries.
MANGAN BATTERY
NICKEL CADMIUM
BATTERY
DRY ALKALINE
BATTERY
Insert adapter plug into input jack on back of stapler. Plug
adaptor into electrical outlet
(120 VAC). Use battery for portable applications.
Insert adaptor plug here
Loading Staples
Press button on back of stapler to release staple
channel. Pull channel forward and load standard
staples. Push channel back until it clicks into place.
For best results, always
use Swingline S.F.
®
4
®
Premium Staples.
Plug-In Adaptor Power Operation
Light on: normal operation
Continuous flashing: Low on staples,
or open magazine
Light off: no power
Battery Power Operation
Light off: unit operating by power
Continuous flashing: Low on staples or
open magazine.
(NOTE: batteries must be installed)
LOW STAPLE INDICATOR
If stapler jams, press
button on back of stapler
to release staple channel.
Pull channel out and
remove jammed staples.
Stapler Operation
Adjust the adjustment slide to the desired location. Slide
can be adjusted from 1/4" to 1-1/2". Simply insert paper
into front opening to staple documents instantly. This model
staples up to 20 sheets of
20 lb. paper at a time.
Clearing Jams
Electric Power Source
Do not staple more than 20 sheets
of 20 lb. paper at a time.
Allow stapler to complete
its cycle before removing
paper from front opening.
