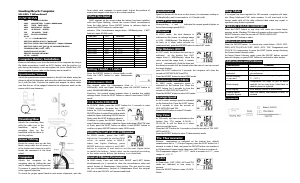

Handleiding Sunding SD-548A Fietscomputer

Handleiding

Sunding Bicycle Computer

SD-548A（

（（

（16Functions）

））

）

FUNCTIONS

- SPD CURRENT SPEED

- ODO ODOMETER （

（（

（0.001～

～～

～99999km/m)

- DST TRIP

DISTANCE

- MXS MAXIMUM

SPEED

- AVS AVERAGE

SPEED

- TM ELAPSED

TIME .

- CLK CLOCK (12H/24H)

- SCAN

- “+” “－

－－

－” COMPARATOR

- SETTING SPEED SCALE（

（（

（km/h,m/h）

））

）

- SETTING TYRE CIRCUMFERENCE : (0mm～

～～

～9999mm)

- SETTING THE LAST VALUE OF ODOMETER/ODO

- TEMPERATURE (-10℃

℃℃

℃~70℃

℃℃

℃)

- MAINTENANCE ALERT

- FREEZE FRAME MEMORY

- AUTO

ON/OFF

Computer Battery Installation

Remove the battery cover from the bottom of the computer by using a

flat blade screwdriver, install an AG13 battery with the positive (+)

pole facing the battery cover and replace the cover. Should the LCD

show irregular figures, take out the battery and re-install it.

Speedometer Sensor

Attach the speedometer sensor bracket to the left fork blade, using the

shims to adjust the diameter, and using the cable ties (show below) to

tie it with the fork. Position the sensor and magnet as show; make

sure that the arc of the magnet intersects the alignment mark on the

sensor with 1mm clearance.

Mounting Shoe

Attach the mounting shoe

with the cable ties to the

handlebar, adjust the

mounting shoe on the

handlebar with the shims to

hold its position.

Sensor Wiring

Route the sensor wire up the fork

blade, using cable ties to secure it

at the bottom and crown to avoid it

hinder the movement of the front

wheel.

Computer

Attach the computer to the

mounting shoe by sliding the unit

until it snaps firmly into its postion.

To remove it, press the button on it

in the opposite direction.

To check for proper speed function and sensor alignment, spin the

front wheel with computer in speed mode. Adjust the position of

sensor and magnet when there is no or weak reaction.

Wheel Size Input

‘2060’ appears on the screen when the battery has been installed,

with one figure flashing, choose the correct wheel circumference

from the table below. Press RIGHT button to advance digits as

needed and LEFT button to confirm and

advance. (The circumference ranges 0mm～9999mm),press LEFT

button to enter KM/M mode

Setting（

（（

（km/h）

））

）/（

（（

（m/h）

））

）

Press the RIGHT button to choose km/h or m/h.

Press the LEFT button to enter Maintenance

mode.

Maintenance Alert

The original value for Maintenance Alert is

600(km/m), with one figure flashing, press the RIGHT button to

select 200/400/600/800(km/m).

Function : the wrench signal appears when it reaches the settled

mileage limits. Press the LEFT button to cancel it and enter CLOCK

mode.

CLK Mode(12H/24H)

In CLOCK Mode, press the LEFT button for 3 seconds to enter

12/24H selection. Re-press the LEFT

button for 12/24 exchanging. Press the

RIGHT button to enter Hour setting mode,

when the figure indicating HOUR start to

flash, press the LEFT button to adjust it.

Continue to press the RIGHT button to

enter Minute setting mode, when the figure indicating MINUTE start

to flash, press the LEFT button to adjust it and RIGHT button to

confirm, re-press RIGHT button to enter ODO mode.

Setting the Last value of Odometer

In ODO mode, press the LEFT

button for 2 seconds to set the ODO

value, its initial value is 0000.0.

when one figure flashing, press

RIGHT button to adjust it and LEFT

button to confirm it, and start to set the next figure.(after

re-install the battery, latest value can be inputted according

to the value exists before the battery is re-installed).

Reset of Mileage Parameter

In ODO mode, Press and hold both RIGHT and LEFT button

simultaneously for 3 seconds to clear the circumference value and

cancel (km/m) & Maintenance Alert setting. The user need to reset

the tyre circumference, (km/m) & Maintenance Alert, the original

ODO value and CLOCK will remain unaffected.

Speedometer

Speed is shown all the time on the screen, its maximum reading is

99.9km/h(m/h), and it is accurate to +/- 0.1km/h (m/h).

Speed Comparator

During riding , ‘+’and ‘-’ indicates the current speed is higher or

lower than average speed(AVS) .

Odometer

In ODO mode , the total distance is

indicated on the screen, its mileage range

is 0.001～99999km(m). The display will

be back to 0 when value exceeds its

maximum limit, press the RIGHT button to enter DST mode.

Trip Distance (DST)

In DST mode, the distance for one trip is

indicated on the bottom line. DST

ranges from 0～99999km(m), when the

value exceed the range limit, it restarts

from 0 automatically. Both the time and

the distance records will be cleared when the time of one trip exceed

the range limited.

press the LEFT button for 5 seconds, the computer will clear the

records of DST,MXS,AVS and TM.

Press the RIGHT button to enter MXS mode.

Maximum Speed (MXS)

In MXS mode, maximum speed is

indicated on the bottom line. Press the

LEFT button for 5 seconds to clear the

records of MXS,DST,AVS and TM.

Press the RIGHT button to enter AVS mode.

Average Speed

In AVS mode, average speed is indicated

on the bottom line. Press the LEFT button

for 5 seconds to clear the records of

AVS,DST,MXS and TM.

Press RIGHT button to enter TM mode.

Trip Time

In TM mode, trip time is indicated on the

bottom line. TM ranges 0 :00 :00 ～

99 :59 :59. It will be back to 0 when

value exceed the limits.

Press the LEFT button for 5 seconds to clear the records of TM, DST,

MXS and AVS.

Press the RIGHT button to enter T (thermometer) mode.

The Thermometer

Exterior temperature is indicated on the bottom line, default

measurement unit is ℃(Celsius Degree), press the LEFT button for 3

seconds to make it flash, and press the RIGHT button can transfer it

to F(Fahrenheit Degree) mode, then press LEFT button to confirm it.

The Temperature ranges -10℃~70℃, and it is accurate to 0.1℃, error

margin is ±0.1℃.

SCAN

In Scan mode , DST, MXS, AVS and TM

mode are indicated in turn every 4

seconds.

Press the RIGHT button to enter CLOCK

Mode.

Sleep Mode

If no signal has been inputted for 300 seconds, computer will enter

into Sleep Mode,and CLK value remains. It will turn back to the

former mode with all the data collected then when any signal is

inputted or any button is pressed.

FREEZE FRAME MEMORY

Press the LEFT button in any time will enter into freeze frame

memory mode. Flashing TM data will appear on the screen. Press the

RIGHT button to view the records of TM,AVS,MXS,DST.

Press the LEFT button to end it.

Buttons Instruction

Press the RIGHT button to choose any mode below : ODO, DST,

MXS, AVS, TM, SCAN（DST、MXS、AVS、TM）Temperature, and

CLOCK. It’s unnecessary to press the LEFT button except choosing

the Freeze frame Memory mode.

In Freeze Frame Momery mode, press the RIGHT button, several

data will display, re-press LEFT button to turn back to other modes.

Malfunctions and Problems

Malfunctions Problems

No speedometer Improper magnet/sensor alignment

Inaccurate value is

indicated

Improper input, such as wheel

circumference.

Slow display

response

Temperature exceeds operating limits(0

℃～55℃).

Black display

Temperature too high, or put in direct

sunlight for too long time. Need back to

shadow place for a period.

Weak display Poor battery contact or dead battery.

Display shows

Irregular figures

Take out battery and reinstall it after 10

seconds.

Accessories

TIRE SIZE

CIRC

TIRE SIZE

CIRC

700c x 38mm 2180 26’’ x 2.25’’ 2115

700c x 35mm 2168 26’’ x 2.1’’ 2095

700c x 32mm 2155 26’’ x 2.0’’ 2074

700c x 30mm 2145 26’’ x 1.9’’/1.95’’ 2055

700c x 28mm 2136 26’’ x 1.75’’ 2035

700c x 25mm 2124 26’’ x 1.5’’ 1985

700c x 23mm 2105 26’’ x 1.25’’ 1953

700c x 20mm 2074 26’’ x 1.0’’ 1913

700cTubulari 2130 24’’ x 1.9’’/1.95’’ 1916

650c x 23mm 1990 20’’ x 1-1/4’’ 1618

650c x 20mm 1945 16’’ x 2.0’’ 1253

27’’ x 1-1/4’’ 2161 16’’ x 1.95’’ 1257

27’’ x 1-1/8’’ 2155 16’’ x 1.5’’ 1206

26’’ x 2.3’’ 2135
